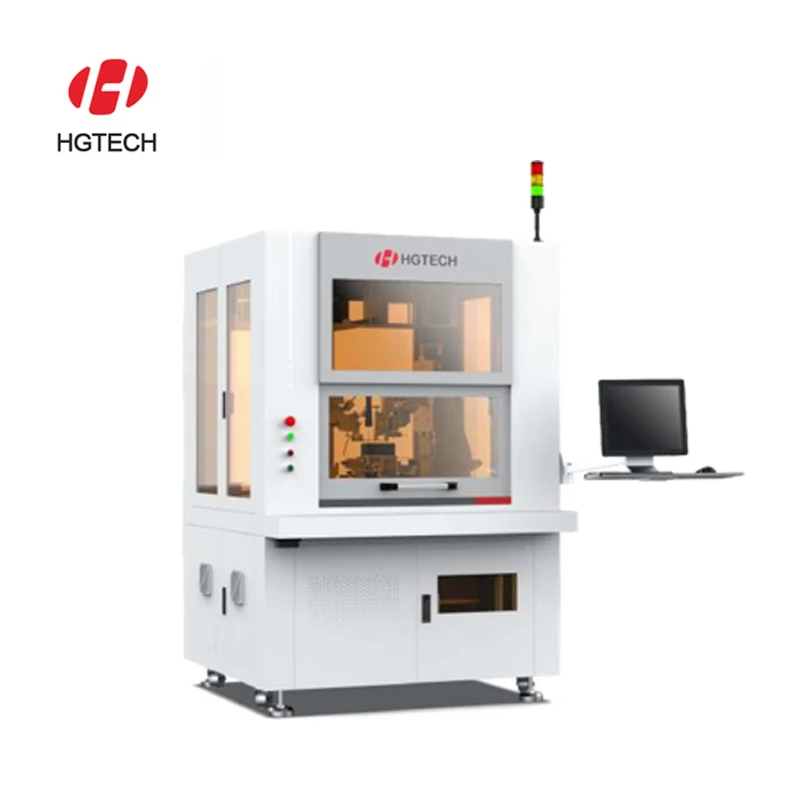

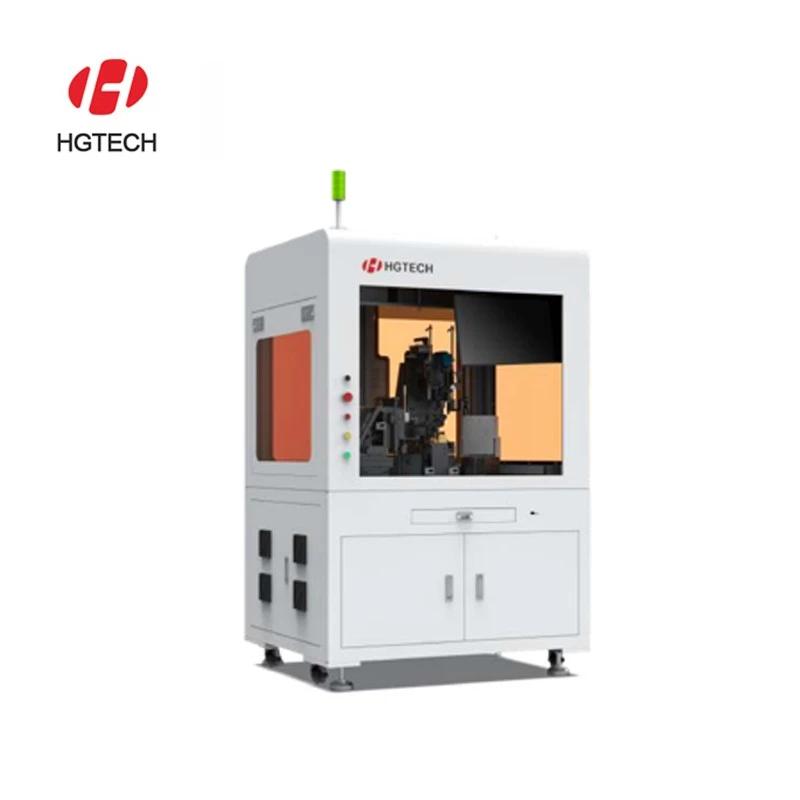

AI Computing Multimode Optical Module Coupling System

The Multimode Optical Module Coupling System is a high-precision coupling platform designed for the alignment and assembly of lenses, VCSELs (Vertical-Cavity Surface-Emitting Lasers), and optical fibers in multimode optical modules. Featuring a precision motion stage, advanced vision alignment system, and real-time optical-power monitoring, the system enables accurate multi-axis alignment in X/Y/Z/θ directions, followed by UV-adhesive curing for secure and reliable fixation. The proprietary intelligent light-seeking algorithm delivers automatic recognition and calibration, ensuring consistent coupling efficiency across high-volume production runs.

Advantages：

• Intelligent Light-Seeking Algorithm: Proprietary algorithm with automatic recognition and calibration, reducing setup time and operator dependency.
• Multi-Axis Precision Alignment: High-accuracy X/Y/Z/θ motion stage delivers sub-micron positioning for optimal coupling efficiency.
• Real-Time Optical Power Monitoring: Continuous power feedback ensures peak coupling performance before curing.
• Vision-Guided Alignment: Advanced vision system provides precise component recognition and placement verification.
• UV Adhesive Curing: Integrated UV curing system delivers fast, reliable, and consistent bonding results.
• High Throughput: Automated workflow significantly increases production capacity compared to manual coupling.

• Data Center & Cloud Computing: Critical for manufacturing high-speed multimode transceivers (SR4/SR8/100G/400G/800G) used in data center top-of-rack switches and server interconnects, supporting the exponential growth of cloud infrastructure and hyperscale data centers.
• AI & High-Performance Computing (HPC): Enables production of VCSEL-based optical interconnects for AI accelerator clusters and GPU/TPU networks, where short-reach, high-bandwidth multimode links are essential for training large language models and deep learning workloads.
• Enterprise Networks: Supports manufacturing of multimode optical modules for campus LANs, enterprise data centers, and building backbone networks, ensuring reliable high-speed connectivity across organizational infrastructure.
• Consumer Electronics & Data Storage: Applied in the production of short-reach optical links for high-end storage area networks (SANs) and next-generation consumer devices requiring high-speed internal optical interconnects.
• Medical Imaging & Healthcare IT: Facilitates manufacturing of multimode transceivers used in hospital PACS systems, medical imaging data centers, and high-speed diagnostic equipment networks where data integrity and speed are critical.
• Broadcast & Media: Supports production of multimode optical modules for broadcast studios, video production facilities, and live event infrastructure, enabling uncompressed 4K/8K video transmission over short distances.
• Education & Research: Essential for university research labs and R&D facilities developing next-generation multimode fiber technologies and VCSEL-based communication systems.
