Free Maintenance Laser Cutting Machine

Free Maintenance Laser Cutting Machine

HG FARLEY LASERLAB since 1977,Australia's top industrial design team devoted R & D for more than 40 years. Annual laser cutting machine sales quantity more than 600units, sales amount reaches 50 million USD. As part of strong warranty policy, we provide 5 years warranty for laser source, which benefit local users a lot, save about 50% future maintenance cost....

Send InquiryChat Now

Product  Features:

Farley Laserlab Marvel series Fiber Laser Cutting Machine is newly developed with powerful

cutting capacity and lower cost. This series machine could be packed into normal standard

container for shipment. Comparing with other standard laser cutting machine, Marvel has features of:

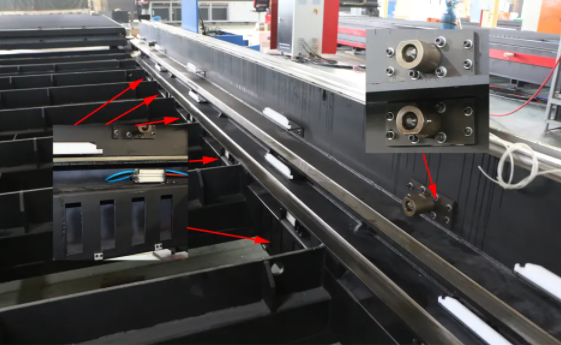

High stability: Marvel series Laser cutting machine adopts Gantry structure with dual rack & pinion driven system, with advantages of reliable stability and high rigidity.

Fast dynamic response: The gantry of machine is of Aluminum casting gone through times aging treatment, thus it has advantages of light weight and fast dynamic response.

Extremely low running cost: As part of strong warranty policy, we are the first laser cutting machine supplier to provide 5 years warranty for laser source, which means users can save more than 50% maintenance cost in the future.



Tech Parameter:

Model

MARVEL

6000-4022

MARVEL

6000-6022

MARVEL

3000-3015

MARVEL

3000-4022

Power

6000W

6000W

3000W

3000W

Cutting area

4000x2200

6000x2200

3000×1500

4000x2200

X-axis(mm)

4064

6096

3100

4064

Y-axis(mm)

2232

2225

1525

2232

Z-axis(mm)

140

300

140

140

Maximum positioning speed of X/Y-axis

100

100

80

80

Maximum linkage positioning speed of X/Y-axis

140

100

110

110

Maximum acceleration of X/Y-axis

0.05

0.05

0.05

0.05

Position accuracy of X/Y-axis

0.025

0.025

0.025

0.025

Power protection level

IP54

IP54

IP54

IP54

Max weight table(average)(Kg)

1600

3100

900

1600


Applicatons:
