GF3015 CNC Metal Fiber Laser Cutting Machine
GF3015 CNC Metal Fiber Laser Cutting Machine
GF3015 Fiber Laser Cutting Machine adopts gantry-motion structure, linear guide, screw drive, AC servo motor and drives, and vacuum system (both sides), etc. The one-time processing area is 3m*1.5m.Not only that the equipment's design is advanced and reliable, but also that all key components are from both national and international well-known brands. In particular, we use Germany company's professional laser CNC system for the electrical control system. This special laser CNC system has advantages of high integration, better control precision and more stable operation, therefore, in addition to the meet the requirement of cutting carbon steel plate, it can also meet the requirement of cutting SS plate, aluminum alloy, copper alloy and other materials.
1. Fiber laser cutter power: 500W,1000W,1500W,2000W,3000W,4000W,6000w,8000w,etc.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron,aluminum,carbon steel,stainless steel,copper,hardware and other metal sheet materials.
4. Other machine optional parts can be chosen,such as,rotary axis,exchange working table,full cover, etc.
5. China Top fiber laser machine cutting manufactuers,HGTECH,High quality,with CE etc certificates.
Machine Model | GF3015 | |
Cutting Area(length x width) | 3000mm×1500mm | |
Laser Wavelength | 1,070-1,080nm | |
CS Cutting Thickness | Max. 5mm/10mm | |
SS Cutting Thickness | Max. 3mm/5mm | |
Interface | USB,RJ45 | |
X-Axis | Moving Speed | 50m/min |
Stroke | 3000mm | |
Position Accuracy | ±0.05mm/m | |
Repeatability Accuracy | 0.05mm | |
Y-Axis | Moving Speed | 50m/min |
Stroke | 1500mm | |
Position Accuracy | ±0.05mm/m | |
Repeatability Accuracy | 0.05mm | |
Z-Axis | Stroke | 50mm |
Power Supply Requirement | 400V/50Hz/30A(36A) | |
Continuous Working Time | 24Hours | |
Machine Weight | Approximate 8500kg | |
Dimension(length×width×height) | 4500mm×2300mm×1500mm |
This special laser CNC system has advantages of high integration, better control precision and more stable operation, therefore, in addition to the meet the requirement of cutting carbon steel plate, it can also meet the requirement of cutting SS plate, aluminum alloy, copper alloy and other materials.
Mechanical motion systems of the laser cutting machine generally includes machine tool bed, beam and other basic components for the installation of laser cutting head. The mechanical automatic processing is achieved through control system. The high quality machine tool bed reduces laser equipment's vibration during the process of high speed operation.Equippted with waste collection drawers for slag discharging and dual ventilation dust pipe, the working table bears metal plates less than 500kg.
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
Sample Show:
Product Video:

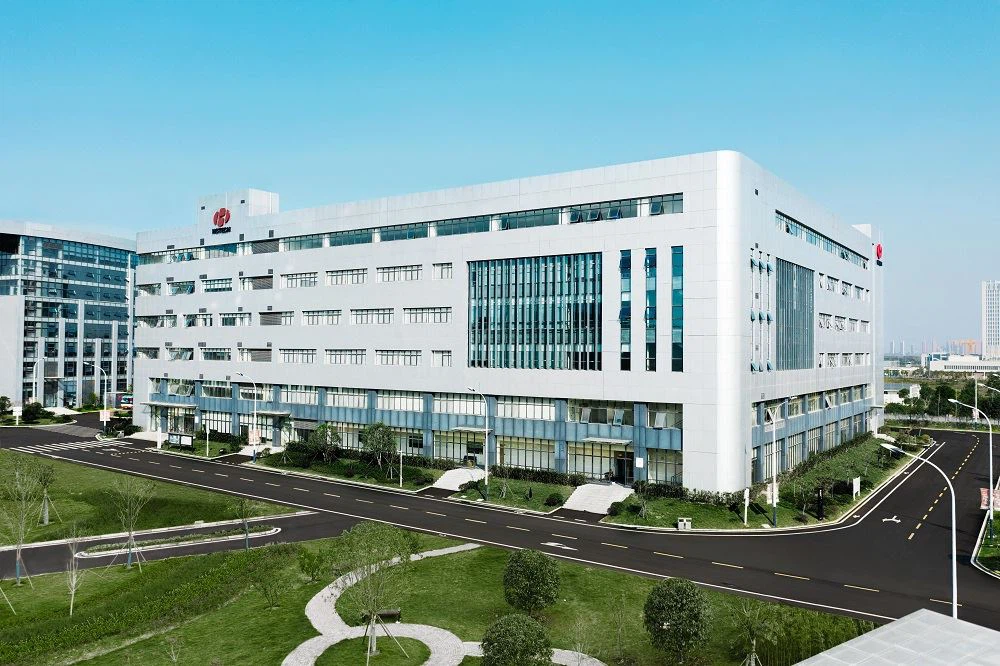

Company Profile：
HGTECH was founded in 1999, it was the first laser-based hi-tech company to go public in China, and also the leading company in laser industry and one of the top 100 electronic information companies domestically.. HGTECH has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services.
The main products of HGTECH cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, military, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.
HGTECH has actively participated in the wave of modern industry, undertaken a number of national key projects and major scientific and technological research projects in the laser field, and enriched the core of "optical manufacturing" according to market demand and application scenarios. We will enable laser technology to connect with things, promote the efficient connection between things, people and things, and realize barrier free information sharing. Serving scientific and technological innovation, we continue to broaden the boundary between laser and intelligent manufacturing, break through industry barriers, and make laser technology and intelligent manufacturing solutions become advanced tools and concepts to drive human production and enable social services.
FAQ:
Q: Do you have CE document and other documents for customs clearance?
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q: How about warranty?
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available and engineers across the world, We need your machines running in order to keep your business running.
