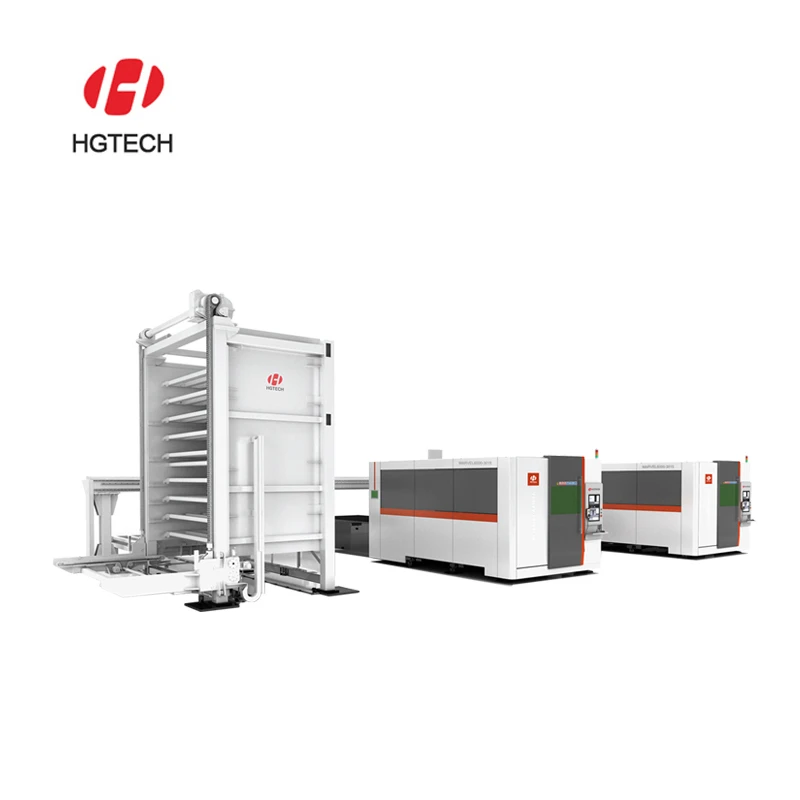

Smart Factory Laser Cutting Flexible Production Line
Products Description
LCK Series Smart Factory Solution - Laser Cutting Automated
Material Warehouse System
HGTECH LCK series laser cutting flexible smart factory solution integrates stereoscopic material warehouse, automatic gantry loading & unloading system and production‑line monitoring system. It can be matched with 1‑3 sets of laser cutting machine tools, realizing full‑automatic material storage, retrieval, loading, unloading, sorting and stacking without frequent manual intervention for sheet‑metal workshops.
Products Features:
Modular standardized design: Flexible configuration, compatible with mainstream laser cutting machine brands, quick on‑site assembly and commissioning.
Full‑process automatic operation: Realize single‑plate suction, automatic separation, loading/unloading, cutting, sorting, stacking, warehousing & waste material handling.
MES network interconnection available: Production‑line real‑time monitoring, data traceability, connect with customer's smart factory management system.
24‑hours non‑stop continuous production: Greatly reduce manual labor, improve workshop operation efficiency and safety performance.
Plate‑protection design: Optional fork‑tooth protective belt to prevent scratches on high‑value aluminum & stainless‑steel sheets.
Space‑saving stereoscopic storage: Maximize workshop vertical space utilization for raw material and finished‑parts storage.
Products Application
- Large‑scale sheet‑metal fabrication factory & metal processing workshop
- Steel structure, machinery equipment manufacturing industry
- Automotive parts, new‑energy equipment metal component production
- Smart unmanned workshop upgrading, digital factory transformation
- Support carbon steel, stainless steel, aluminum alloy plate mass production
Key Technical Specifications
| Model | LCK Series | ||
| Structure | Gantry type loading and unloading | ||
| Applicable materials | Carbon steel, stainless steel, aluminum alloy | ||
| Max sheet size | 3000*1500mm | 4000*2000mm | 6000*2000mm |
| Max layer of warehouse | 15 | 10 | 10 |
| Sheet thickness | ≤20mm | ≤16mm | ≤10mm |
| Single sheet weight | ≤720kg | ≤1000kg | ≤1000kg |
| Max load per layer | 5T | ||
| Loading car weight | 5T | ||
| Stacked finished‑product weight | 3T | ||
| Loading method | Crane or forklift | ||
| Unloading method | Unloading car or conveyor | ||
| Standard cycle time | 260s | 300s | 300s |
| Lifting speed | 15m/min | ||
| Pallet in‑out speed | 10m/min | ||
| Horizontal speed of loading‑unloading system | 40m/min | ||
| Vertical speed of loading‑unloading system | 20m/min | ||
| Max whole‑machine power | 45KW | 63KW | 65KW |
| Compressed air requirement | 0.5‑0.7Mpa | ||
Extended Functions & Customization Options
- Match with 1‑3 laser cutting machines for multi‑machine centralized feeding management
- Optional fork‑tooth anti‑scratch protective belt for high‑quality sheet processing
- Robot sorting & palletizing workstation optional for finished‑parts automatic handling
- Support docking with MES / ERP for whole‑plant digital management
- Custom‑made warehouse layers, loading capacity according to customer's workshop layout
Typical Project References
HGTECH LCK series smart factory solutions have been delivered for many well‑known manufacturing enterprises, covering machinery, new‑energy, sheet‑metal fabrication industries, realizing unmanned automatic plate‑material production workshop.
Turn‑key Solution Deliverables
- Stereoscopic material warehouse storage rack system
- Gantry automatic loading & unloading mechanism unit
- Production‑line monitoring & control cabinet, HMI operation software
- Safety protection fence & auxiliary conveying equipment
- On‑site installation, commissioning, operator training & remote after‑sales support
