Hydraulic Press Brake Bending Machine
HGSTAR press brakes benefit your bottom line with higher quality parts, faster cycle times, lower operating and maintenance costs. Whether your application requires bending simple shapes or complex parts, RAYMAX has a press brake to match your needs and your budget. HGSTAR press brakes are designed for reliability, repeat-ability, precision, performance and ease-of-operation.
High-Precision CNC Bending Machine for Metal Fabrication
A CNC bending machine is an advanced industrial tool designed to shape metal sheets and plates with exceptional accuracy and efficiency. Utilizing computer numerical control (CNC) technology, this machine automates complex bending operations, ensuring consistent results for industries such as automotive, aerospace, construction, and electronics.
We offer several series of press brakes with features and options tailored to different manufacturing environments. Each series offers a range of lengths and tonnages. HGSTAR can also custom design and manufacture a press brake to your exact needs.
|
No |
Configuration |
Numerical value |
unit |
Remark |
|
1 |
Nominal pressure |
1350 |
KN |
|
|
2 |
Foldable plate width |
3200 |
mm |
|
|
3 |
Slide stroke |
200 |
mm |
|
|
4 |
Maximum opening height |
420 |
mm |
|
|
5 |
Column spacing |
2700 |
mm |
|
|
6 |
throat depth |
400 |
mm |
|
|
7 |
Fast down speed |
160 |
mm/ s |
|
|
8 |
Return speed |
130 |
mm/ s |
|
|
9 |
Working speed |
10 |
mm/ s |
|
|
10 |
Main motor power |
11 |
Kw |
servo motor |
|
11 |
CNC system |
DA53T |
|
Netherlands |
|
12 |
X-axis travel of rear stopper |
500 |
mm |
The main oil cylinders on both sides are synchronously controlled by the electro-hydraulic servo valve imported from Germany and the grating ruler of FAGOR in Spain,The feedback is accurate, and the slider operates accurately, so that the bending accuracy and the repeated positioning accuracy of the slider are high.
Key Features：
Precision Engineering: Achieve bends with tolerances as tight as ±0.1 degrees, ideal for intricate components and high-volume production.
Versatile Material Compatibility: Process stainless steel, aluminum, copper, and other metals with thicknesses ranging from 0.5mm to 25mm.
User-Friendly Interface: Intuitive CNC programming allows operators to input designs via CAD/CAM software, reducing setup time and human error.
Durable Construction: Built with heavy-duty steel frames and wear-resistant components for long-term reliability in demanding environments.
Energy Efficiency: Optimized hydraulic or electric drive systems minimize power consumption while maintaining high-speed operation.

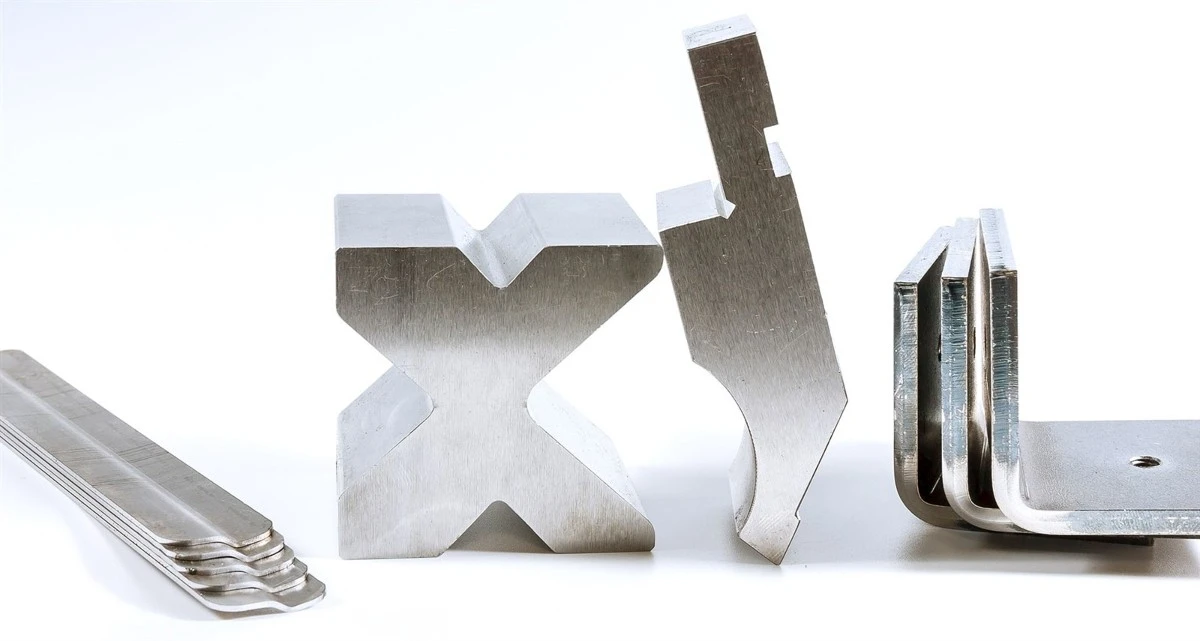

Sample Display:
Equipment installation and debugging:
1. The supplier shall provide the purchaser with technical services such as the basic diagram of the equipment, schematic diagrams of water, electricity, gas and installation requirements within 10 days after signing the contract.
2. After the equipment is assembled in the supplier's factory, promptly notify the purchaser to send personnel to the supplier's site for pre-acceptance; and promptly notify the purchaser to make preparations for the installation and commissioning of the equipment at the purchaser's site.
3. The supplier provides free installation and commissioning services of the machine, and the buyer provides the necessary auxiliary facilities such as machine hoisting equipment and scaffolding and several auxiliary workers.
4. After the equipment is installed and debugged at the buyer's site, the final acceptance of the equipment is carried out.
Why Choose Our CNC Bending Machine?
Our CNC bending machine combines cutting-edge technology with robust design to deliver unmatched performance in metal forming. Ideal for both small workshops and large-scale factories, it streamlines production, reduces material waste, and enhances product quality.
