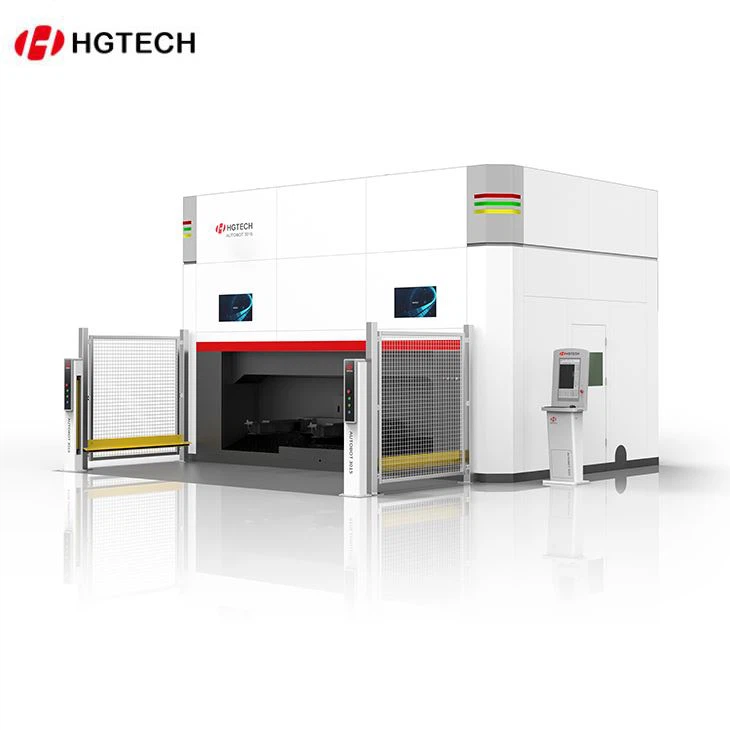

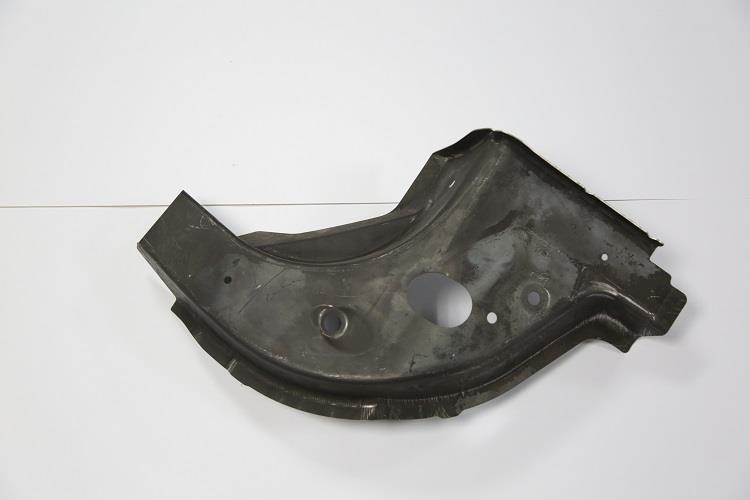

AUTOBOT3015 auto thermal forming parts 3D laser cutting machine can cut all kinds of auto forming parts with high efficiency, specially designed for auto thermal forming parts cutting in mass production....

Send InquiryChat Now

Product  Features:

AUTOBOT3015 adopts gantry dual-drive structure, integrated welding processing molding bed, high rigidity and high dynamic response of the crossbeam. And dual-gear rack and double-motor drive with dedicated rail base and linear guide rail. It has features such as light weight and good dynamic response. With other characteristics, transmission components such as gearboxes, lead rails and racks are made of national and international famous brands. The overall gantry structure and the transmission of gear racks ensure high-speed positioning, rapid dynamic response and good stability of the equipment. Its wear-resistant and shock-resistance maintain its high-precision, high-efficiency and low-noise performance under full-load operation. The stability and acceleration performance of the equipment is good, with the features of integrated design and high configuration.



Tech Parameter:

Equipment Model

AUTOBOT3015

Stroke

X  axis stroke

3000mm

Y axis stroke

1500mm

Z axis stroke

680mm

A axis stroke

±135°

C axis stroke

±n×360°

U axis stroke(Floating axis)

±17.5mm

Accuracy

X/Y/Z axis positioning accuracy

±0.05mm

X/Y/Z axis repeat positioning accuracy

±0.03mm

A/C axis positioning accuracy

0.03°

A/C axis repeat positioning accuracy

0.01°

Speed

X,Y , Z axis max positioning speed

96m/min

X,Y , Z axis max resultant speed

166m/min

A/C axis max positioning speed

360°/s

X,Y,Z axis max acceleration

1.0G

X,Y,Z axis max resultant acceleration

1.7G

A/C axis max acceleration

3600°/s²

Working Table

Rotary working table technical specification

Rotary diameter: 4000mm

Maximum load of one side:400kg

Single fastest deflection time:3s

Power technical specification

Phase

3

Power voltage

380V

Frequency

50Hz

Power protection grade

IP54

Weight and Dimensions

Host weight

12000kg

Dimensions(Complete unit)

Length×Width×Height  9000×6700×4300mm
