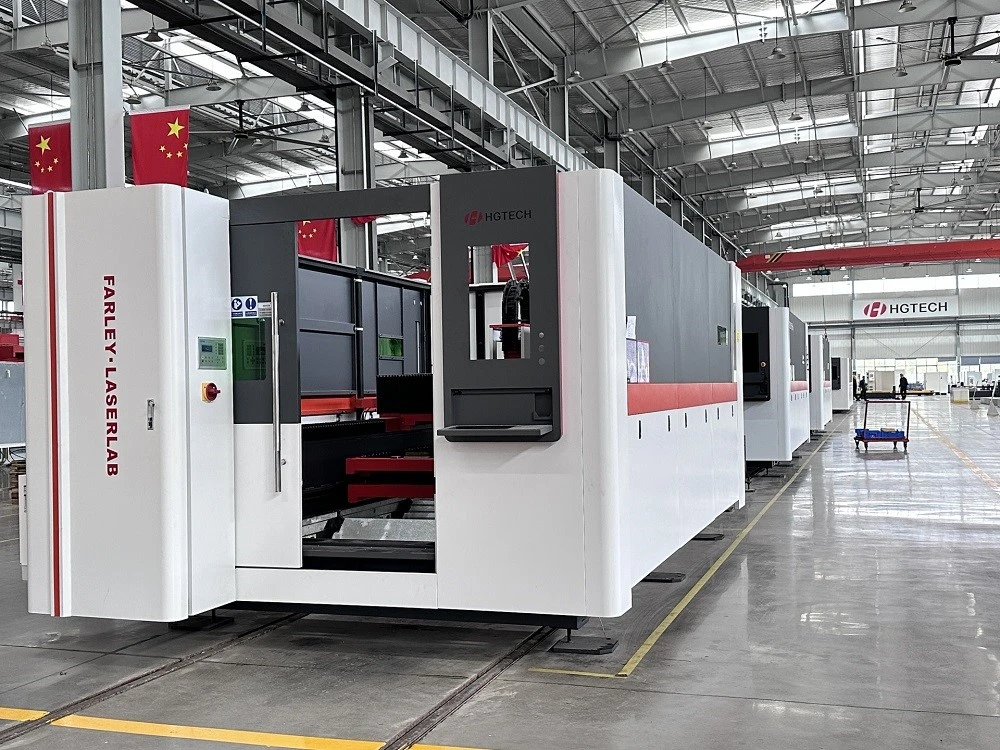

Metal Fibre Laser Cutting Machine
The fibre laser cutting machine is a highly versatile and efficient tool that can be used in a wide range of applications, including metal cutting, plastic cutting, and other material processing tasks. Its speed, accuracy, and precision make it an ideal choice for industries such as the automotive, aerospace, and electronics industries, where the quality of the final product is critical.
One of the significant advantages of using fiber laser cutting machines is their ability to cut through a wide range of materials with varying thicknesses, depending on the machine's power output. It can cut through thick steel, aluminum, and other metals with ease, and its high precision means it can produce intricate designs or cutting patterns that would be difficult to achieve with traditional cutting tools.
Moreover, fibre laser cutting machines are easy to use, requiring minimal operator training and experience. They can be customized to suit various manufacturing needs, making them a valuable addition to any production line. These machines are also environmentally friendly, producing minimal waste and emitting low levels of noise and pollution.
|
Machine Model |
GF3015 |
|
|
Cutting Area(length x width) |
3000mm×1500mm |
|
|
Laser Model |
Fiber laser IPG-500W/1000W |
|
|
Laser Wavelength |
1,070-1,080nm |
|
|
CS Cutting Thickness |
Max. 5mm/10mm |
|
|
SS Cutting Thickness |
Max. 3mm/5mm |
|
|
Interface |
USB,RJ45 |
|
|
X-Axis |
Moving Speed |
50m/min |
|
Stroke |
3000mm |
|
|
Position Accuracy |
±0.05mm/m |
|
|
Repeatability Accuracy |
0.05mm |
|
|
Y-Axis |
Moving Speed |
50m/min |
|
Stroke |
1500mm |
|
|
Position Accuracy |
±0.05mm/m |
|
|
Repeatability Accuracy |
0.05mm |
|
|
Z-Axis |
Stroke |
50mm |
|
Power Supply Requirement |
400V/50Hz/30A(36A) |
|
|
Continuous Working Time |
24Hours |
|
|
Machine Weight |
Approximate 3000kg |
|
|
Dimension(length×width×height) |
4500mm×2300mm×1500mm |
|
Metal Fiber Laser cutting machine cutting area:1500*3000mm
0.5-20mm carbon steel and 0.1-12mm stainless steel perfect cutting brings customer good feedback from Industry parts making.
Material: Carbon steel,stainless steel,alloy steel, spring steel and copper, aluminum, gold,silver and titanium sheets and pipes.
Industry: machinery parts electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields
Exact: size fixing, result fixing
Smooth: like baby skin and less burning edge
Material: Carbon steel/ stainless steel/ galvanized steel/electrolytic galvanized steel/sillicon steel/alloy/brass/red copper/titanium sheet/spring steel/nicket titanium alloy/chromium nicket iron alloy/titanium alloy
