Tube Laser Cutting Machine

Tube Laser Cutting Machine

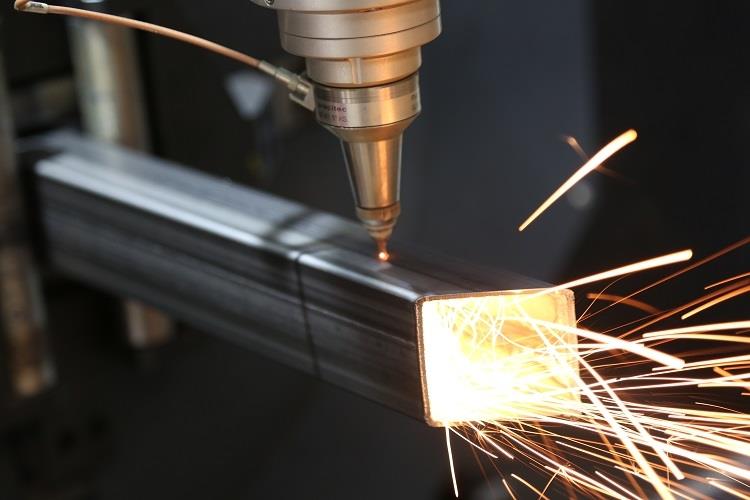

Farley Laserlab’s new LT Series is a milestone advancement in new fiber laser cutting technology. Specifically designed for high volume cutting of tubes and pipes the LT 9035 and LT 7535 provide far greater efficiency than normal laser systems when cutting pipes and tubular metals. New enhancements allow the LT Series to position and move tubes and pipes mechanically (eliminating manual handling) to increase speed, precision and productivity....

Send InquiryChat Now

Product  Features:

LT Series is a milestone advancement in new fiber laser cutting technology. Specifically designed for high volume cutting of tubes and pipes the LT 9035 and LT 7535 provide far greater efficiency than normal laser systems when cutting pipes and tubular metals. Tube and rectangular tube can finish full automatic feeding without human operation. Deformed tubes can achieve artificial semi-automatic feeding. The fast corner response improves cutting efficiency greatly. The work pieces can be unloaded automatically in different areas after cutting

Full automatic Feeding system – Regular and rectangular pipes can be integrated into a fully automated feeding process, without human operation.

Advanced clamping system – It can self adjust focus according to material size and clamping force, which ensures that correct amount of clamping force is applied so that pipes do not get damaged.

Corner fast cutting system – It provides fast response to corners, greatly improving cutting efficiency.

High efficiency unloading system – the LT Series can be set to automatically unload finished work pieces, gently and safely in designated areas.



Tech Parameter:

Laser output power

2000w

Laser wavelength

1070nm

Max range for Z axis

250mm

Axial accuracy

≤±0.05mm/m

Repeat accuracy

≤±0.03mm/m

Max thickness of cutting carbon steel

16mm (Optimum thickness 0.5--12mm)

Max thickness of cutting Stainless Steel

8mm (Optimum thickness 0.5--7mm)



Max size of cutting metal pipes

round pipe Ф160mm

square pipe 100mmx100mm (diagonal 30mm-160mm)

thickness 3mm, length 6000mm

Power supply

380V/50HZ



Applicatons:
