Handheld Fiber Laser Marking System

Handheld Fiber Laser Marking System

Lot numbers, Arabic numerals, Common symbols, Chinese character, English letters, graphic ,Roman alphabets, VIN codes, Automatic date printing ,automatic production Numbers and other designated languages on any metal material....

Send InquiryChat Now

Product  Features:

It is widely used in sign logo display , ID cards & mobile phones,solar & semiconductor,general marking & engraving automotive (parts and displays),electronics & sensors/instruments industrial components,jewelry laser etching,medical devices & implants,manufacture of processed parts,pardware industry etc.

Its raw materails could be metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface treatment(Phosphatize, aluminum anodizing, electroplating the surface),ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products),epoxy resin(electronic components, packaging, insulation layer).etc.

1. Applying the most widely used up-down lifting structure to realize multi-functions,making  it easy to operate and make high quality product.

2. It can use under various working conditions.It is portable and flexible to move by hand.Also, it is available to fix on the machine.

3. It can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.

4. Marking contents could be saved automatically and not be destroyed enen the machine is power-off.

5. It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment.

6.All-in-one deisgn and small dimension,it is compact and convenient to maintain,easy to operate.

 Parameter:

Power

10w/ 20w/ 30w/ 50w

Laser source

MAX, RAYCUS, IPG

Working area(mm)

150*150, 250*250, 300*300

Laser wave length(mm)

1064

Marking depth(mm)

≤1.2

Marking Speed

800 standard characters/second

 Minimum Line Width(mm)

 0.012

 Minimum Character(mm)

 0.15

Repeated Perecision(mm)

±0.003

Life-span of fiber laser module

100 000 hours

Focus Spot Diameter(mm)

<0.01

Output Power of Laser

10%~100% continuously to be adjusted

System Operation Environment

Windows XP / W7--32/64bits / W8--32/64bits

Cooling mode

Air-cooling-Built-in

Temperature of Operation Environment

15℃~35℃

Power input

220V / 50HZ / single phase or 110V / 60HZ / single phase

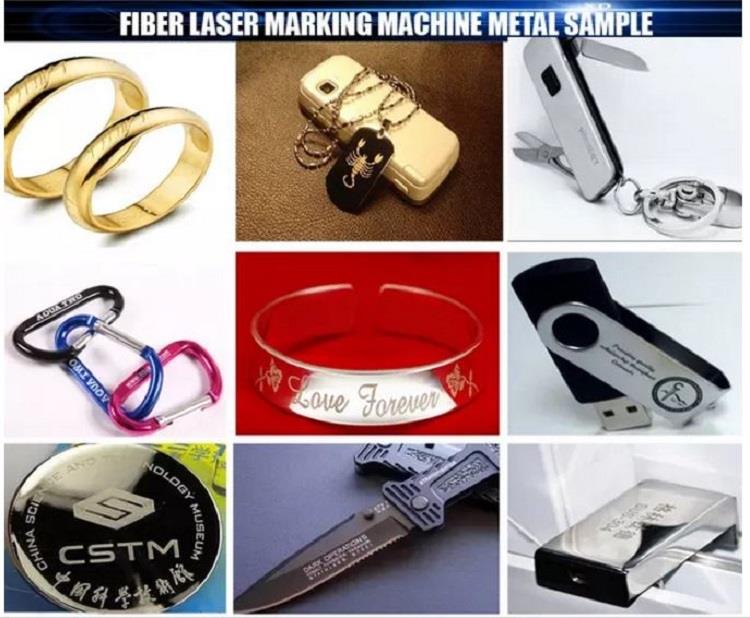

Applicatons:
