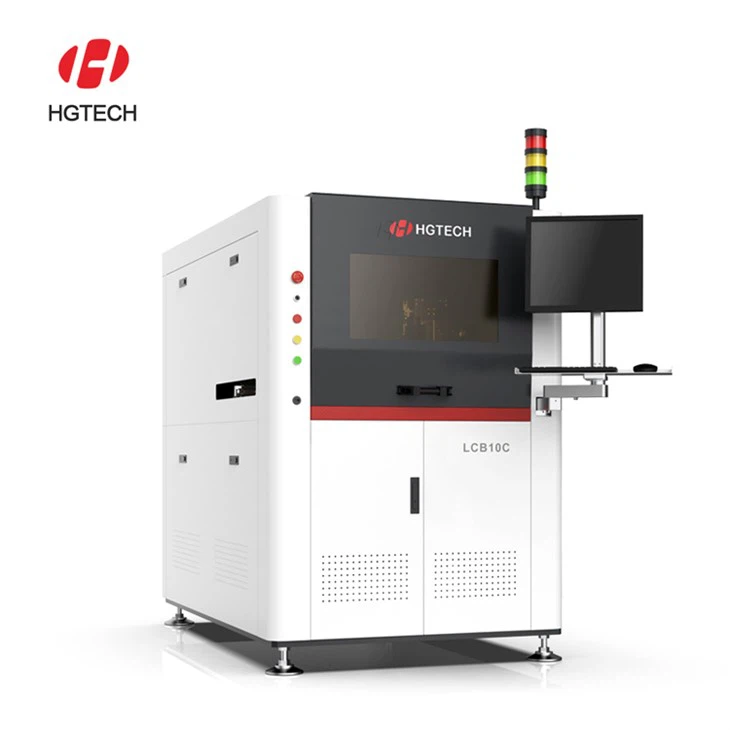

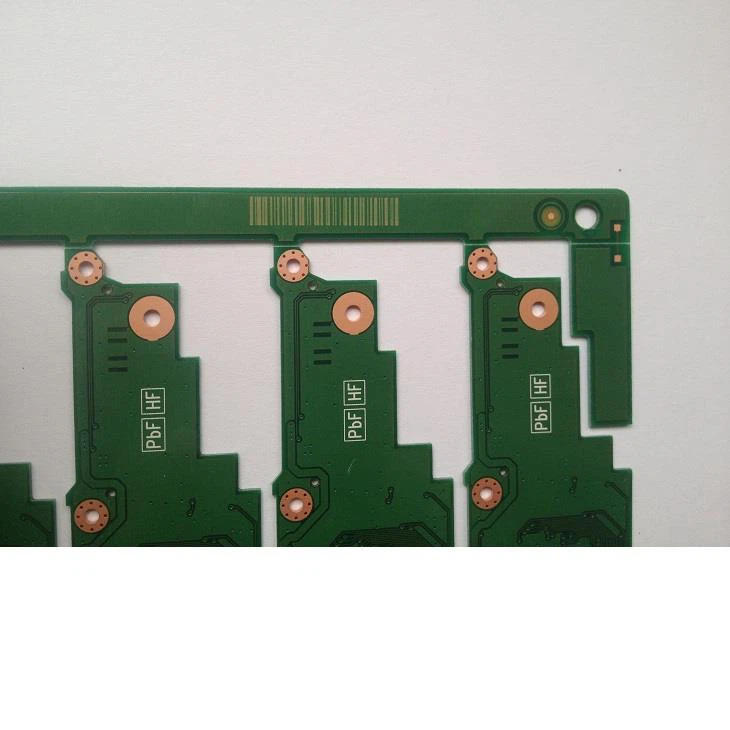

PCB LASER MARKING MACHINE

PCB Laser Marking Machine from HGLASER is designed for bar codes marking, 2D codes and characters, graphics and other information on any kinds of printed circuit board. Integrated with high-performance CO2 / Fiber laser source, import high-pixel CCD camera and micron-level mobile module, PCB......

Send InquiryChat Now

PCB Laser Marking Machine from HGLASER is designed for bar codes marking, 2D codes and characters, graphics and other information on any kinds of printed circuit board. Integrated with high-performance CO2 / Fiber laser source, import high-pixel CCD camera and micron-level mobile module, PCB Laser Marking Series is competent to pre-marking automatic positioning and post-marking feedback reporting.



Fast Marking Speed

Professional industrial laser, fast marking speed, operated in 24 hours continuously, suitable for high-speed continuous production line

High Precision Marking

High-precision galvanometer scanning system, uniform light spot, precision marking, 100% positive feedback.


Low Energy Consumption

High electro-optic conversion efficiency, no consumables within 100,000 hours.

Flexible Structure

Friendly man-machine dialogue interface, easy operation and adjustment.



Main features of PCB laser marking machine:


1. High-quality laser beam, small focusing spots and well-distributed power.

2. High-pixel CCD camera makes automatic positioning, identification and feedback reporting come true.

3. Gantry structure and synchronous transmission guide ways ensure the stable & precision performance.

4. Automatic focusing and track width adjusting are designed to match up different production lines.

5. Integrated with SMT online operation and automatic off-board station.

6. Independent research on specialized software for PCB marking, with function of preventing and repairing, reducing the rate of product irregularity.

7. Connected with MES system for data communication


图片9 图片10 图片11
图片12 图片13 图片14


  • Windows interface, all the Chinese/English-language operating system compatible with Photoshop, CORELDRAW, AutoCAD and other CAD software;

  • Input: Chinese and English words, time, dates, barcodes, serial numbers and other markings(standard);

  • Output: Chinese and English graphics, all types of barcodes, two-dimensional codes(standard);

  • Advantages:

  • 1) Marking software is using Visual Basic, users can take advantage of 32 technical, and marking software is running in Windows XP/7 system;

  • 2) Marking speed twice faster than traditional methods;

  • 3) Friendly interface: Marking software allows the user setting interface personalized, software can adapt to the individual requirement of user.



Laser marking machine is made up by laser, control box, focusing system and Computer.

The brief of the main parts are as followed:

Configuration

Standard

configuration

Parts

Description

Laser Source

TOP GRADE IPG/Raycus 10/20/30/50W pulsed fiber laser source

Coherent or Synrad or Rofin 10/20/30/40W for CO2 laser source


Control box

Laser power

Cooling system

Air cooling
Scanner China / German brand high speed

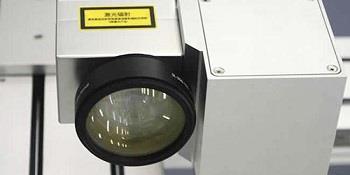

Focus lens

F=160mm,area 110mm×110mm

Marking software and computer

Processor 2.6G、memory≥2G、hardware≥500GB、17’LCD、SATA×2、 USB×8、COM×1、LDT×1、LAN×1,2×PCIe ,1× 8Channel I/O ,WINDOWS 7 (English version);

Z axis system

Range 285mm



Technical parameters

Technical index

LCD 10/20/30/50

Laser source

Syntony type

Fiber /CO2

Wavelength

1064nm (for fiber and CO2 laser source)

Output power

10/20/30/50W (for fiber and CO2 laser source)

Q switch frequency

≤200 kHz (for fiber and CO2 laser source)

Galvo head

Max speed

7000mm/s

Distinguish ratio

0.001mm

Repeatability

0.003mm

Optical output characters

Marking range

F=160mm,area 110×110mm (Standard)

Min line width

0.01mm

Min characters height

0.2mm

Cooling system

Cooling system

Air cooling (Fiber or CO2)

Control System

Laser power supply

AC110-220V/50-60Hz

Working table Z axis range

285mm

Max Output power

1KW

Working Condition

0~35°C,Humidity≤90% (for fiber and CO2 laser source)


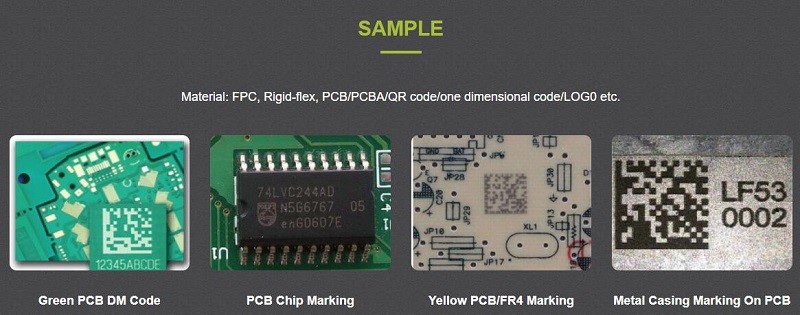

Application:

Widely and perfectly suitable for Computer, Consumer Electronic Industry, Cell key-press, Precision instrument, and 3C electronic industry, etc.

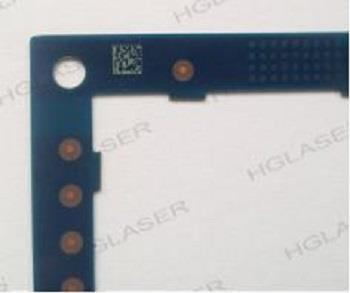

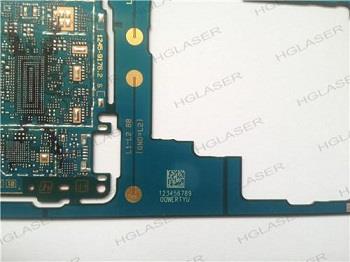

图片15 图片16

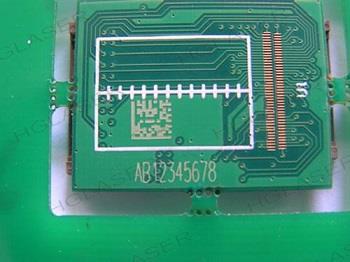

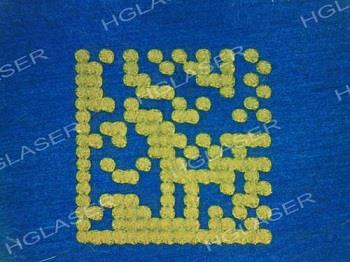

图片17 图片18




Training and Installation

 After acceptance procedure completes, HG Laser will provide a 2-3 days training free of charge depends on the concrete situation, training content including:

  • Basic knowledge of Laser security

  • Introduction of principle of laser and structure of laser marking machine

  • Operating with laser marking software

  • Operating laser marking machine and notices

  • Daily maintenance, alignment and spare-parts replacement


Every machine has completed installed, approved under extremely quality control system and performance test.

For complex machine or special request of customer, as soon as machine arrived, HG Laser will install the machine under assistance of customer, specialized tools and test equipment will be provided by HG Laser. Once again HG Laser will provide training to customer’s operators and relative staff.


Quality is our culture, excellent custom satisfaction is our soul!


Commissioning and Acceptance

At the completion of the installation, the commissioning will commence. The machine will be considered accepted once the machine completes acceptance tests to following standard. At the completion of commissioning training will commence.

No.

Items

Contents

1

Time

After installation and commissioning

2

Location

Customer's site

3

Machine Appearance; Function Demonstration; Sample Marking

In accordance with technical proposal


Terms, Delivery and Payment

Please refer to quotation file, all payment are in US/Euro Dollars. Prices shown in the quotation supersede all previous offers, either written or verbal.

The quoted prices exclude any value added or goods and services tax. Such tax, if due, is payable by the customer on arrival of the machine at the port.

If, while on site, HG Laser technicians' schedule is delayed due to circumstances beyond their control, such as site not ready, service not ready, power failure, etc. Customer need to pay the time lost due to the delay at US$300/day/person extra cost.

This quotation is valid for 30 days from receipt of quotation. Prices will be held firm from date of order.

Please refer to the lead time at the third page that goes together with the quotation, based upon current work loading. Firm date will be organized upon receipt of order and deposit.

Delivery includes packing, insurance and freight from HGLaser’s store to customer’s premises. The customer must provide insurance, on the full value of the machine prior to unloading.

Delivery does not include unloading at customer site.

Payment terms lies as following:

•30% Deposit with Order

•70% Balance before the delivery /Upon shipping after completion of testing in our factory

Where the customer delays the delivery or commissioning, the payments will still be due on the dates these if actions would have taken place had there been no delay. Any expenses incurred as a result will be chargeable to the customer.


Warranty

Machine hardware is guaranteed from time of commissioning for a period of 12 months or 2000 hours whichever comes first. This guarantee covers all parts and labor under normal and proper use. The delivery of new parts is at Customer’s expense. Customers are expected to perform simple replacements to ensure minimum possible downtime.

This warranty does not cover compensation for loss of profit, loss of production or for any damage incurred by misuse.

Due to continual improvements in performance and/or manufacturing techniques, HG Laser reserves the right to make any design changes in the machine, or machine control equipment, program systems hardware or software.
