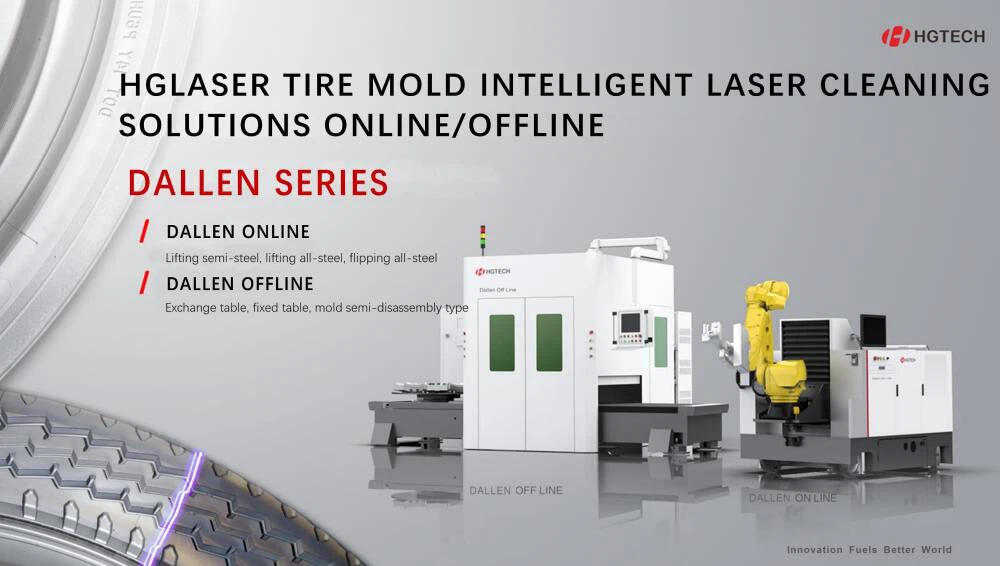

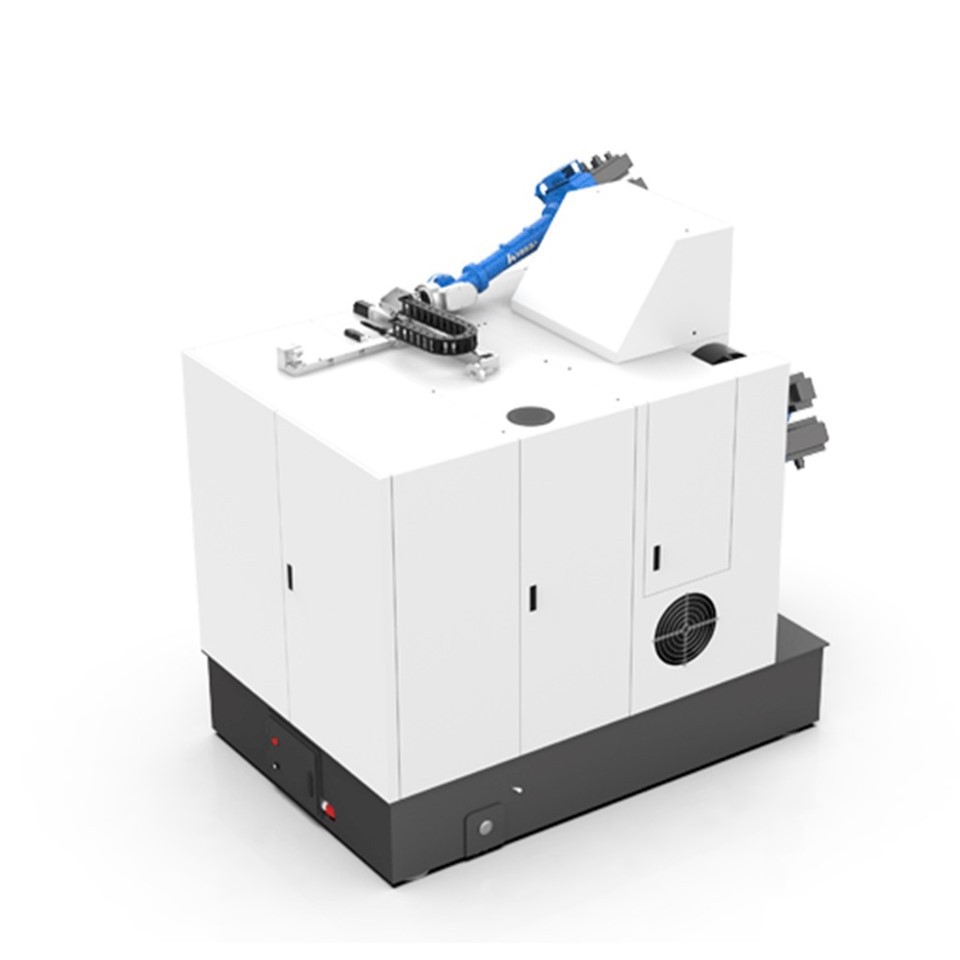

Laser Cleaning Of Tire Mold
Products Applications：
This laser cleaning solution is professionally customized for tire mold maintenance, designed to thoroughly eliminate rubber residues, carbon deposits, vulcanization scale and release agent stains accumulated on tread patterns, sidewall grooves and vent holes during tire curing production. Adopting non-contact pulsed fiber laser technology, it vaporizes contaminants instantly without mechanical friction, chemical solvents or dry ice abrasives, protecting delicate mold textures, thin pattern ribs and splicing seams from scratches, deformation or dimensional loss, greatly extending mold service life
1.Tire Manufacturing Plants:
Remove rubber residues, vulcanizing agents, and mold release compounds from steel/ aluminum tire molds.
Ideal for Michelin, Goodyear, and Bridgestone production lines.
2.Mold Maintenance Centers:
Restore dimensional accuracy of worn molds (±2μm tolerance) for consistent tire sidewall profiles.
Eliminate bacterial colonization in water-based cooling systems.
3.R&D Facilities:
Clean experimental mold designs without surface damage for rapid prototyping.
4.Second-Life Mold Reconditioning:
Revive end-of-life molds for 2-3 additional production cycles through precision cleaning.
| Benefit Category | Technical Advantage | ROI Impact |
|---|---|---|
| Efficiency | 99.5% contaminant removal rate | 40% faster cycle times |
| Precision | ±2μm positioning accuracy | 0.1mm defect reduction |
| Cost Savings | 50% lower labor costs vs mechanical cleaning | 2x mold lifespan extension |
| Environmental | Zero VOC emissions & carbon-neutral process | Compliance with EU REACH |
| Flexibility | Customizable parameters for 50+ mold types | 85% on-site adaptability |
Technical Features：
1. Advanced Laser Technology
Fiber Laser Source: 1064nm wavelength for maximum rubber ablation efficiency.
Pulse Frequency Adjustment: 10-50kHz range to handle varying contamination levels.
Multi-Axis Cleaning Head: 5-axis system for complex mold geometries.
2. Intelligent Control System
AI-Powered Dirt Detection: Auto-adjusts power/speed based on real-time surface analysis.
Process Simulation Module: Visualizes cleaning path optimization before execution.
Remote Diagnostics: IoT-enabled system updates via cloud platform.
3. Safety & Compliance
Class 1 Laser Safety: Fully enclosed system with automatic beam containment.
ISO 13849-1 Certification: PLd safety-rated control system.
EPA Tier 4 Final Compliance: Ultra-low noise (<65dB) and particulate emission control.
Why Choose Our Soulation ?
Proven Track Record: 12+ years serving F1 teams and tire giants.
After-Sales Support: 24/7 online diagnostics + 48-hour parts replacement.
Energy Efficiency: 75% lower power consumption vs CO2 laser systems.
Customization: Bespoke solutions for mold diameters from 300mm to 3.5m.
FAQ:
1. How does laser cleaning compare to traditional methods for tire mold cleaning?
Answer:
Laser cleaning outperforms conventional methods in efficiency, precision, and sustainability:
99.5% contaminant removal rate vs. 78% for chemical cleaning
Zero physical contact eliminates 0.1mm-scale surface defects caused by mechanical abrasion
Eco-friendly process with zero VOC emissions and EU REACH compliance
2.Is laser cleaning safe for rubber molds?
Answer:
Absolutely safe with our rubber-specific solution:
1064nm wavelength prevents carbonization in rubber compounds
Heat-affected zone (HAZ) control ≤50μm to avoid mold warping.
3.Can the system handle molds with complex geometries?
Answer:
Yes, through 5-axis adaptive cleaning:
Multi-jointed robotic arm navigates grooves, ribs, and complex curves
AI-powered path optimization ensures ±2μm precision
