Laser Cleaning System
Product Introduction
The laser cleaning machine is a high-techproduct of the new generation of surface cleaning. It has the advantages ofeasy control, easy automation integration, no chemical reagents, conformablesurface cleaning, high cleaning cleanliness and high precision. It is highlyefficient, environmentally friendly, reliable, and almost no damage. It alsocan solve a variety of problems that traditional cleaning cannot solve.
Nogrinding, non-contact cleaning to avoid secondary pollution
Highcleaning precision and strong controllability
Noconsumables, strong environmental protection
Easyto handle, plug-in, automatic cleaning with handor robot
Highcleaning efficiency saves timeSablesystem and long life
One-timeinvestment, cost-effective
Application:
Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubbermold residue cleaning
Applied Industry:
Automotive perimeter, ship, rail transit,aerospace, rubber mold, environmental protection, etc.
Tech Parameter
| Name | LSF100C | LSF200C | LSF500C |
| Average output power | 100W | 200W | 500W |
| Cleaning line speed | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s |
| cooling method | Air cooled | Water cooled | |
| Job mode | Manual / Auto | ||
| Working distance | 160 (standard), 210, 250mm | ||
| Scanner weight | 2Kg or so | 2.5Kg or so | 2.5Kg or so |
| Fiber length | Standard 4.5M | Standard 4.5M | Standard 10M |
| power supply | AC 220V 50KHz | AC 220V 50KHz | AC 220V 50KHz |
| total measurement | (length × width × height) 718mm × 641mm × 852mm | (length × width × height) 1166mm × 716mm × 1116mm | (length × width × height) 1250mm × 850mm × 1250mm |
| Ambient temperature | 25±5°C | ||
| Vibration required | 0.98 m/s2 (0.1 G) or less, 10 to 60 Hz. | ||

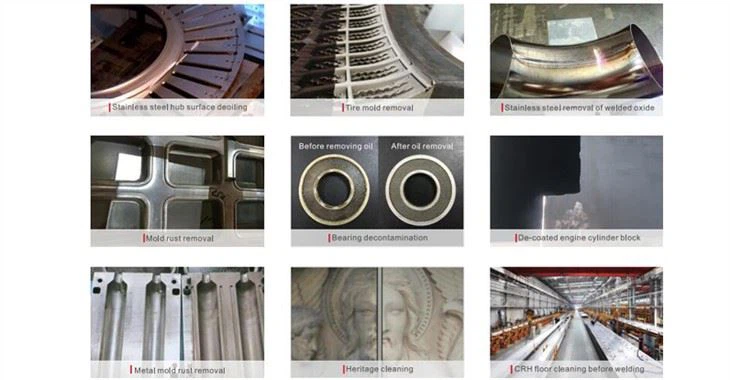

Sample Display
 |  |
|
|
