5-axis Robotic Fiber Laser Cutting Machine
Products Description
5-axis Robotic Fiber Laser Cutting Machine adopts a more complex structure with three linear axes and two rotary axes, allowing for greater flexibility and precision in cutting, as the laser head can move in multiple directions to create complex shapes and angles.
High-Rigidity Machine Bed, Exceptional Dynamic Performance
Designed with an overhead gantry structure and a main body integrally welded from high-strength steel plates, this machine significantly enhances overall rigidity and dynamic stability, providing a solid foundation for high-load processing.
Technical Parameters of 3D Five-Axis Laser Cutting Machine
| Model | AUTOBOT 3015 |
| Laser Power | 3kW |
| Travel Range (L*W) | 3000*1500mm |
| X/Y-axis Positioning Accuracy | ±0.1mm |
| X/Y-axis Repositioning Accuracy | ±0.05mm |
| Max No-load Speed | 100m/min |
| Max Acceleration | 1G |
| A-axis Rotating Angle | ± 135° |
| C-axis Rotating Angle | N*360° |
Features:
- Higher and more accurate positioning accuracy
- No resonance with strong rigidity
- Better stability and greater compressive strength
- N*360° rotation and ±135 ° swing
- Powerful follow-up performance (acceleration up to 2G)
- The center of the light path always remains consistent while cutting head rotating
- Automatic focusing to achieve multiple zoom cutting of a single program
With new accuracy and quality benchmarks
With laser cutting, your part does not deform and the 5-axes of LT-FREE
guarantee precision and repeatability.
The result is an impeccable, precise cut with smooth, burr-free edges, ideal features for welding
by robot during assembly.
Suited for all thicknesses, laser is particularly ideal for thin-walled tubes and other
profiles, which can be easily damaged using traditional technologies.

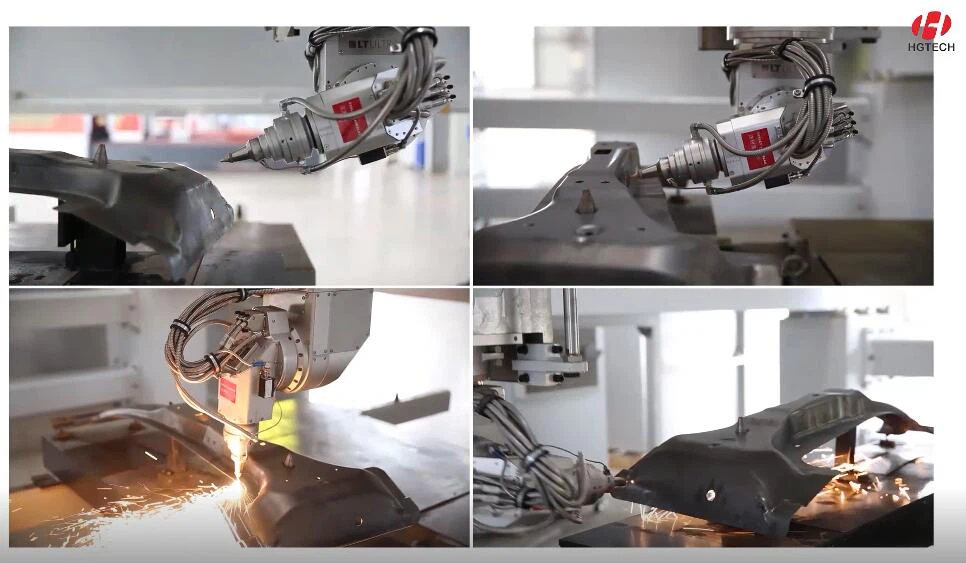

Products Application：
