CNC Laser Cutting Machine

CNC Laser Cutting Machine

The GF3015/4020 Plus laser cutting machine by Farley Laserlab adopts Gantry structure and rack & pinion driven system (both sides), with advantages of reliable stability, high rigidity and faster speed. The positioning speed can be up to 80m/min....

Send InquiryChat Now

Product  Features:

GF series fiber laser cutting machine is mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many other kinds of metal materials.

1.Supporting AI, DXF, PLT, Gerber, LXD and other format graphics, accepted international standard G-codes generated by Master Cam, Type3, Wentai and other software.
2.Automatically optimize external DXF files, including: removing the duplicate lines and minimal graphics, automatically distinguishing internal and external modules and sorts etc, and merging connected lines. All the aforementioned functions can be realized by customization or by hand.
3.Supporting common editing and typesetting functions, including zoom, move, mirror, rotate, align, cope and combination etc.
4.Setting the direction of in/out lines and cutting seam compensation, and executing in line inspection
5.Supporting curve segmentation, merging, curve smoothing, text converting curve, parts merging, breaking up etc.
6.Automatic layout function saving time and labor, automatically lace and off-cut
7.Plate can be easily fully covered through a variety of layout ways
8.Flexible and diverse automatic sorting and manual sorting functions that can lock processing sequence of internal graphics through groups



Tech Parameter:

Machine Model

GF3015 Plus

GF4020 Plus

Cutting Area (L×W)

3000mm×1500mm

4000mm×2000mm

Laser Source

IPG or HGTECH-RAYCUS

IPG or HGTECH-RAYCUS

Laser Type & Power

Fiber & (500/700/1000/1500/2000W)

Fiber & (500/700/1000/1500/2000W)

Laser Wavelength

1070nm ±10nm

1070nm ±10nm

CNC System

CYPCUT

CYPCUT

Servo Motor

YASKAWA(JAPAN)

(X axis 1.3Kw, Y axis 1.8Kw, Z axis 0.4Kw, )

YASKAWA(JAPAN)

(X axis 1.3Kw, Y axis 1.8Kw, Z axis 0.4Kw, )

Laser Cutting Head

Raytools (125mm)

Raytools (125mm)

Display

24" Industry LCD with Monitor

24"Industry LCD with Monitor

Max Moving Speed

80 m/min, Acceleration is 1.0 g

80 m/min, Acceleration is 1.0 g

Position Accuracy

0.03mm

0.03mm

Reposition Accuracy

0.02mm

0.02mm

Stroke

X-axis

3050mm

3050mm

Y-axis

1530mm

1530mm

Z-axis

140mm

140mm

Motion Structure

X and Y axis

Rack & Pinion

Rack & Pinion

Z-axis

Ball screw

Ball screw

Power Supply Requirement

380V 50/60Hz 50A

380V 50/60Hz 50A

Max loading (KG)

800 KG

1200 KG

Appearance size

8100mm×2832mm×1750mm

10300mm×3384mm×1750mm

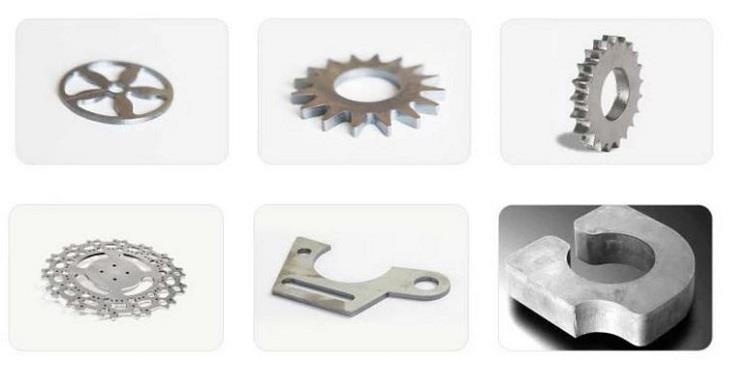

Applicatons:
