Wuhan Farley Laserlab adopts Germany Siemens 840D CNC system especially for laser cutting. This high class laser CNC system, which is R&D by both Germany Siemens engineers and Farley Laserlab engineers, is the most advanced and special for our WALC6030 laser cutting machines high reliability and stability....

Send InquiryChat Now

Product  Features:

WALC Wide Area CO2 Laser Cutting Machine can cut plate up to 6m wide and 50m long in one set up. Double gantry beam structure, gear and rack double side synchronized driven, flying optics and aplanatic system are adopted for WALC6030. And the laser source Rofin DC030 is fixed on of the beam.

1) Simple structure in linear type , easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor , which can directly inline with filling machine .



Tech Parameter:

Model

WALC6030

X Stroke

6000mm

Y Stroke

3000mm

Z 1

150mm

Z 2

150mm

XY

40m/min

Positioning Accuracy

±0.2mm/10m

Repeatibility Accuracy

±0.1mm/10m

Thickness of Cutting MS

≤20mm

Thickness of Cutting SS

≤10mm

Thickness of Cutting AL

≤8mm

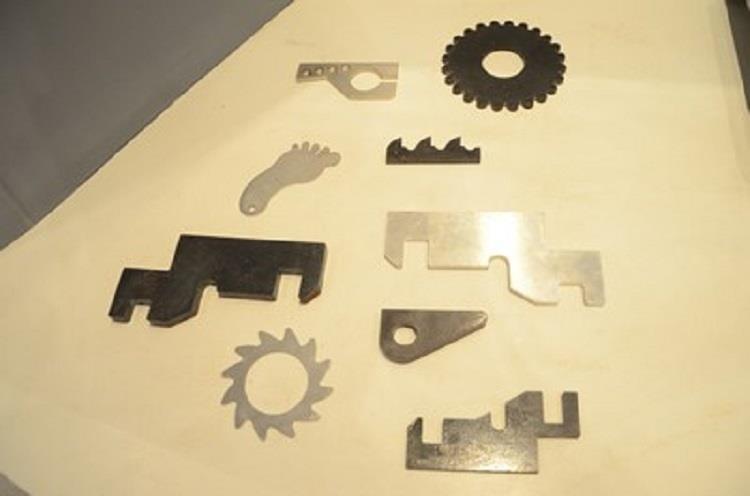

Applicatons:
