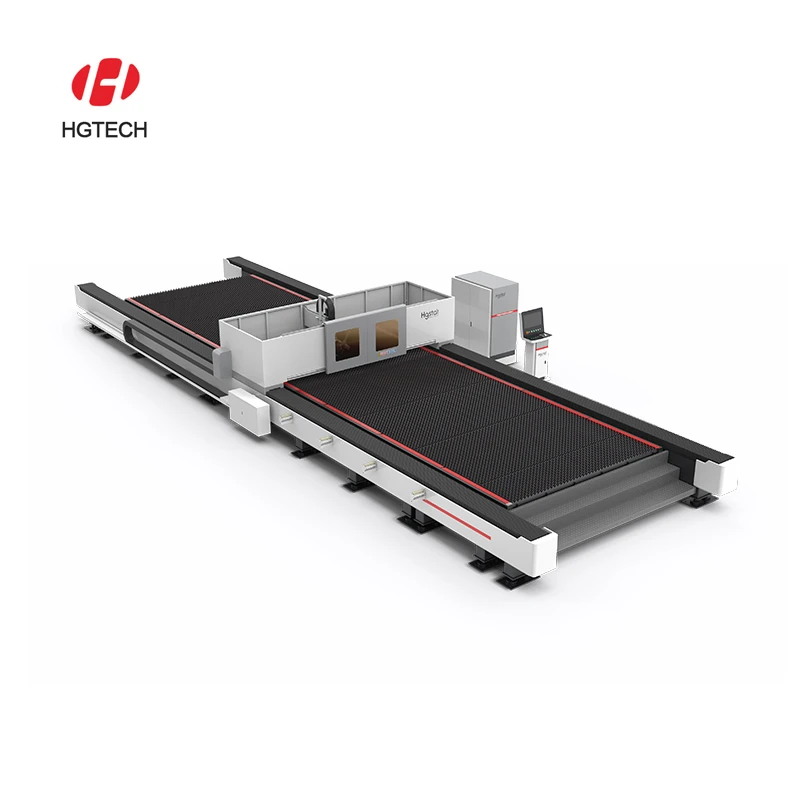

Intelligent Laser-Flame Hybrid Cutting Machine
Products Description

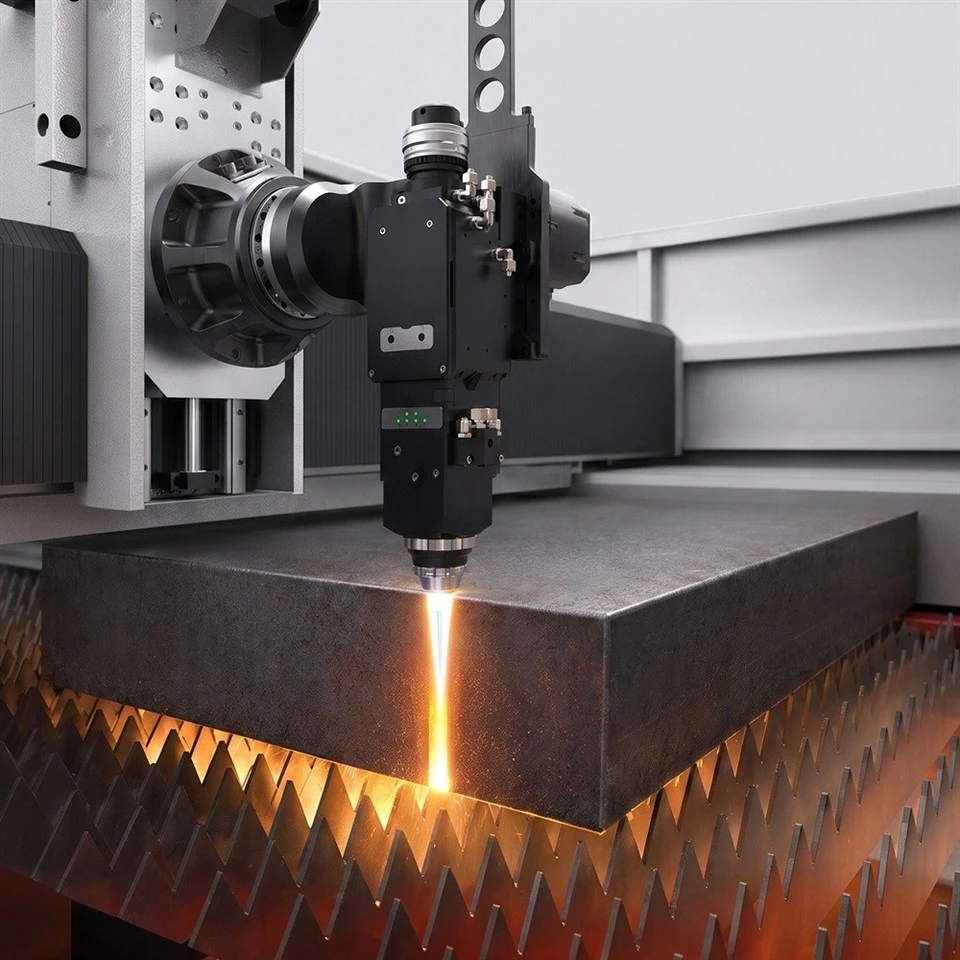

The laser-flame hybrid cutting machine represents a novel technology designed specifically for cutting thick plates. It utilizes a high-brightness fiber laser beam, which is transmitted to the surface of the workpiece-following transformation by a unique optical system-and combined with oxygen and other combustible gases. Through the synergistic action of the high-intensity laser beam and the combustion of the fuel gas, a vigorous exothermic reaction is triggered within the metal. This process significantly elevates the temperature of the molten metal and its oxides within the kerf, while simultaneously drastically reducing their viscosity, thereby enabling the highly efficient and high-quality cutting of thick metal plate.
|
Laser Rated Power |
6000W/12KW/20KW |
|
Focusing Focal Length |
400mm (Auto-focus) |
|
Number of Linked Axes |
3-Axis Linkage |
|
Operation Display |
23.6-inch Touchscreen LCD |
|
Max. Piercing/Cutting Thickness (Carbon Steel) |
140mm (Pre-piercing) |
|
Max. Edge Cutting Thickness (Carbon Steel) |
200mm |
|
Processing Graphic Range |
Any Planar Graphic |
|
Max. Straight-Cut Dimensions (L*W) |
16m*6m (Customizable/Expandable) |
|
X-Axis Effective Travel |
13000mm |
|
Y-Axis Effective Travel |
3200mm |
|
Z-Axis Effective Travel |
≥350mm |
|
X-Axis Positioning Accuracy |
≤±0.1mm/10m |
|
Y-Axis Positioning Accuracy |
≤±0.05mm |
|
X-Axis Repeatability |
≤±0.05mm/5m |
|
Y-Axis Repeatability |
≤±0.03mm |
|
Minimum Resolution |
0.001mm |
Features:
- Revolutionary Laser+Flame Hybrid Tech | Combining high-brightness fiber laser with oxy-fuel combustion to trigger a powerful exothermic reaction, crushing the limits of traditional cutting.
- Ultimate Thick Plate Specialist | Perfectly engineered for heavy-duty metal fabrication, effortlessly cutting thick plates up to 200mm with unmatched efficiency.
- Double the Speed, Half the Cost | The synergistic dual-energy dramatically reduces molten metal viscosity, delivering significantly faster cutting speeds while saving gas and power consumption.
- Flawless Cutting Edge Quality | Super-heated, low-viscosity slag is blown away instantly, ensuring a smooth, clean kerf with minimal dross and zero deformation-saving your post-processing labor costs.
- Designed for ultra-thick carbon steel plate cutting
- Combines fiber laser precision with oxygen-flame power
- Higher cutting speed and productivity
- Excellent edge quality with minimal slag
- Smaller heat-affected zone and reduced material deformation
- Stable cutting performance for heavy-duty production
- Lower processing cost for thick plate applications
- Intelligent CNC control for reliable and efficient operation
Products Application:
Widely used in steel structure fabrication, shipbuilding, heavy machinery, engineering equipment, bridge construction, pressure vessels, mining equipment, energy industries, and large-scale metal fabrication.
The HGTECH Laser-Flame Hybrid Cutting Machine offers an ideal balance of cutting capacity, precision, efficiency, and operating cost, helping manufacturers achieve high-quality cutting of ultra-thick metal plates with maximum productivity.
