Automatic H Beam 3 Chuck Tube Laser Cutting Machine

The HGTECH three-chuck laser cutting machine is designed for industrial manufacturers processing metal tubes and compatible structural steel profiles. Beyond conventional round, square and rectangular tubes, the machine can be configured for applications involving H-beams and other supported steel sections, subject to the working range and clamping requirements of the selected model.

For steel fabrication companies, the ability to process different workpiece geometries on a CNC-controlled platform can help reduce reliance on separate cutting operations. Holes, slots, end contours and other programmed features can be produced directly on compatible workpieces, depending on the machine configuration and cutting process.

The three-chuck design provides an additional clamping position for coordinated workpiece handling. This is particularly relevant when feeding long materials, transferring clamping positions or managing the remaining section of a workpiece during cutting.

The SMART Talos series offers different configurations for industrial tube and profile processing. Selection should be based on the actual profile dimensions, material grade, wall or flange thickness, workpiece length, cutting geometry and production requirements-not laser power alone.

1. Multi-Profile Processing Capability

The machine can be configured for compatible tubes and structural steel profiles, helping manufacturers address a broader range of cutting requirements on one production platform.

Before confirming compatibility with H-beams, channel steel, angle steel or I-beams, verify the supported section dimensions and the available clamping and cutting clearances.

2. Coordinated Three-Chuck Clamping

The three-chuck arrangement supports controlled feeding and clamping transfer during suitable cutting sequences. For long workpieces, this can help manage material movement and provide additional flexibility in the cutting process.

The achievable improvement in cycle time and material utilization depends on the part design and production method.

3. CNC-Controlled Cutting Operations

CNC programming enables repeatable execution of supported cutting paths. For manufacturers producing steel structures or equipment frames, programmed holes, slots and end contours can help reduce manual layout work and simplify the processing of repeated components.

Actual dimensional accuracy depends on the machine configuration, material condition, cutting parameters, workpiece support and process calibration.

4. Potential Reduction in Secondary Operations

When the required geometry can be produced directly by laser cutting, some components may need less separate drilling, marking or mechanical cutting.

The number of operations that can be eliminated depends on the component design. Applications involving large H-beams or thick structural sections should be evaluated for cutting accessibility, edge quality and any downstream machining requirements.

5. Automation Options for Production Lines

Depending on the selected configuration, material loading, feeding and unloading can be integrated into the production workflow. Automation may help reduce manual handling and improve production consistency for suitable workpieces.

For structural profiles, the loading solution must account for section geometry, material weight, bundle handling and safe positioning before cutting.

6. Optional Bevel Cutting

An optional bevel-cutting configuration may be relevant for components requiring angled edges or preparation for welding. The applicable angle range, supported profile geometry and material thickness must be confirmed for the selected setup.

For structural steel fabrication, test the required bevel geometry on the intended material before specifying the machine for production.

Designed for Metal Tubes, H-Beams and Structural Steel Profiles

H-Beam Laser Cutting

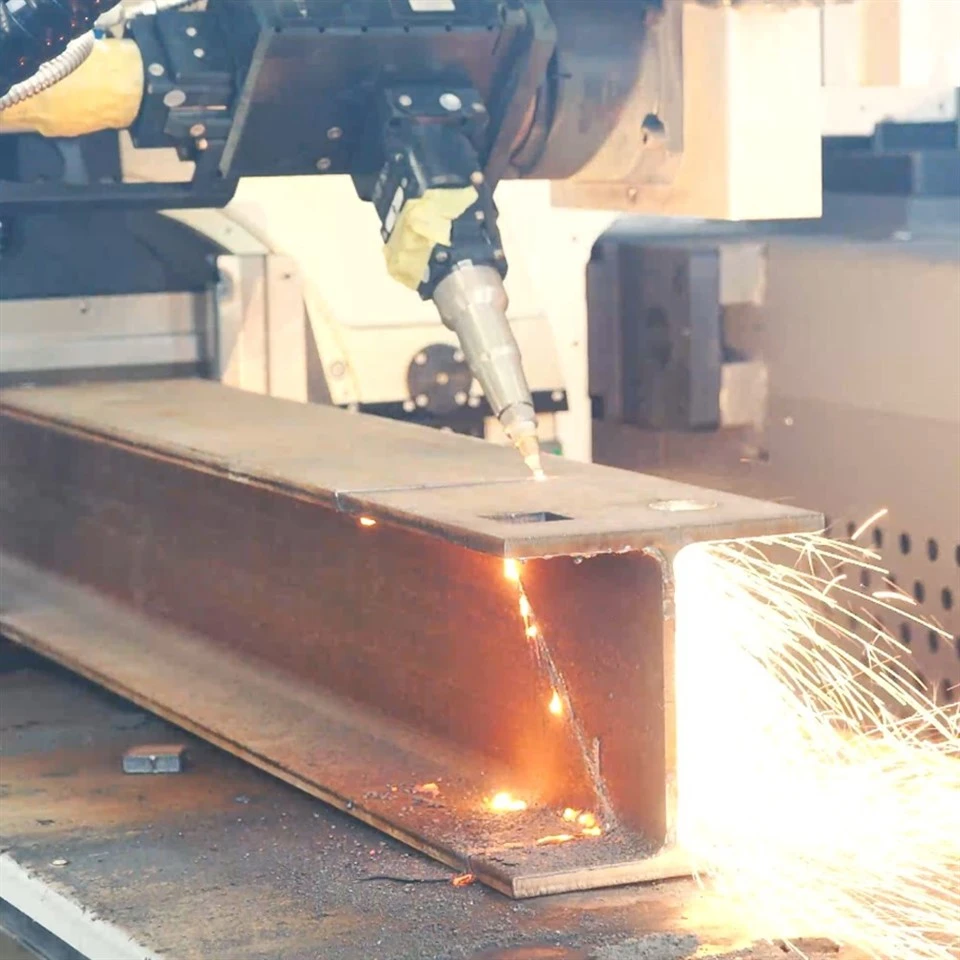

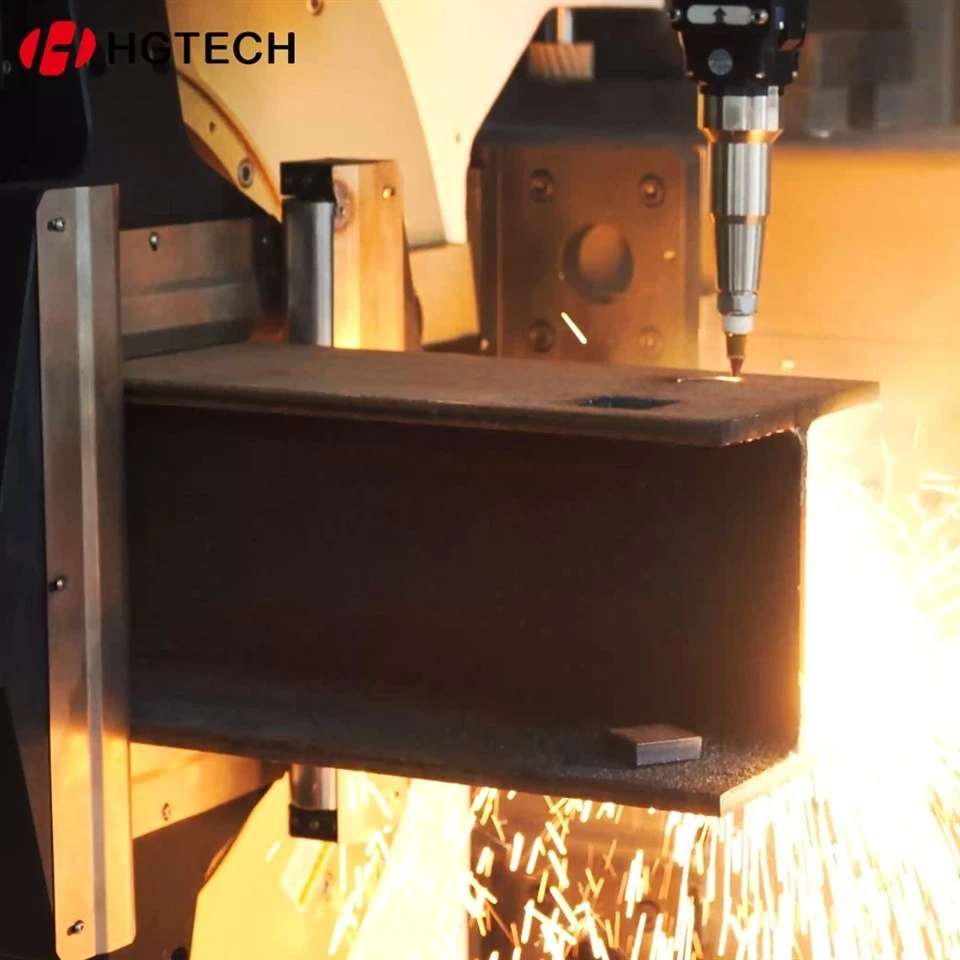

H-beams are widely used in steel structures, industrial buildings, equipment frames and supporting assemblies. Their geometry differs significantly from that of conventional round and square tubes because the section consists of a web and two flanges.

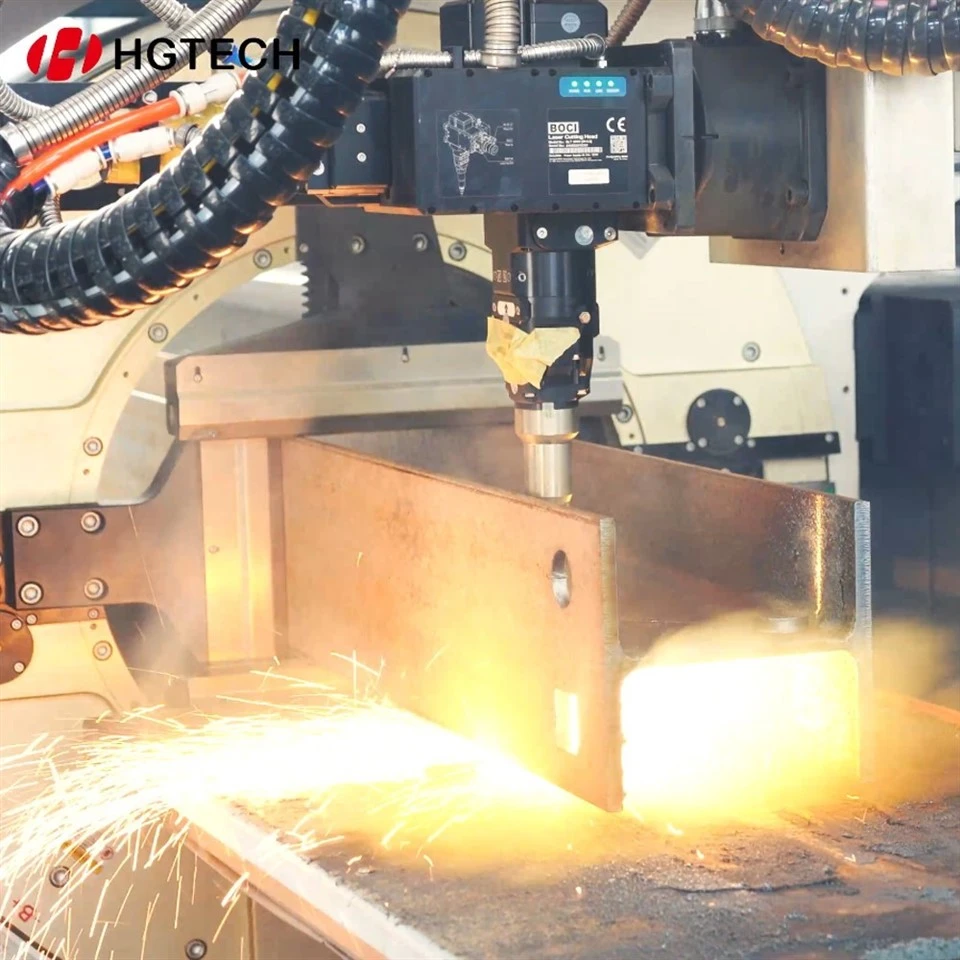

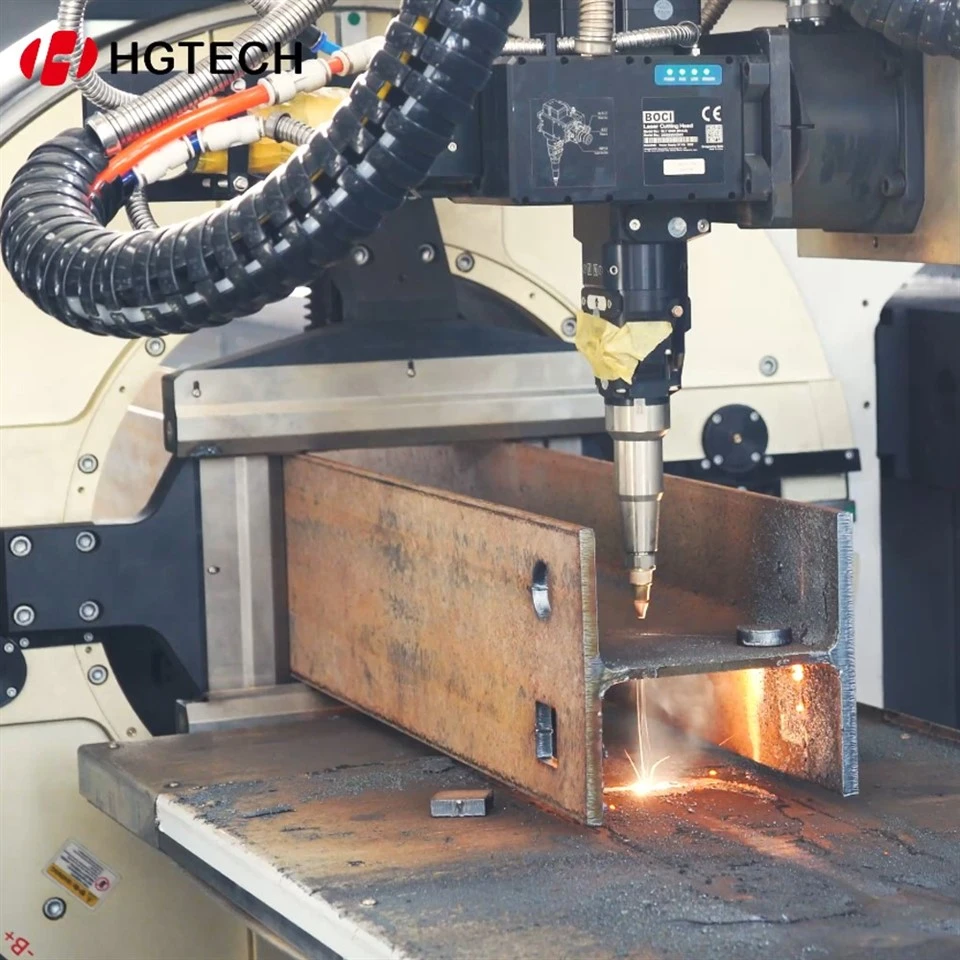

Laser processing H-beams requires suitable workpiece support, clamping clearance, motion coordination and access to the surfaces being cut. Depending on the supported profile and machine configuration, programmed cutting operations may include holes, openings, notches and end contours.

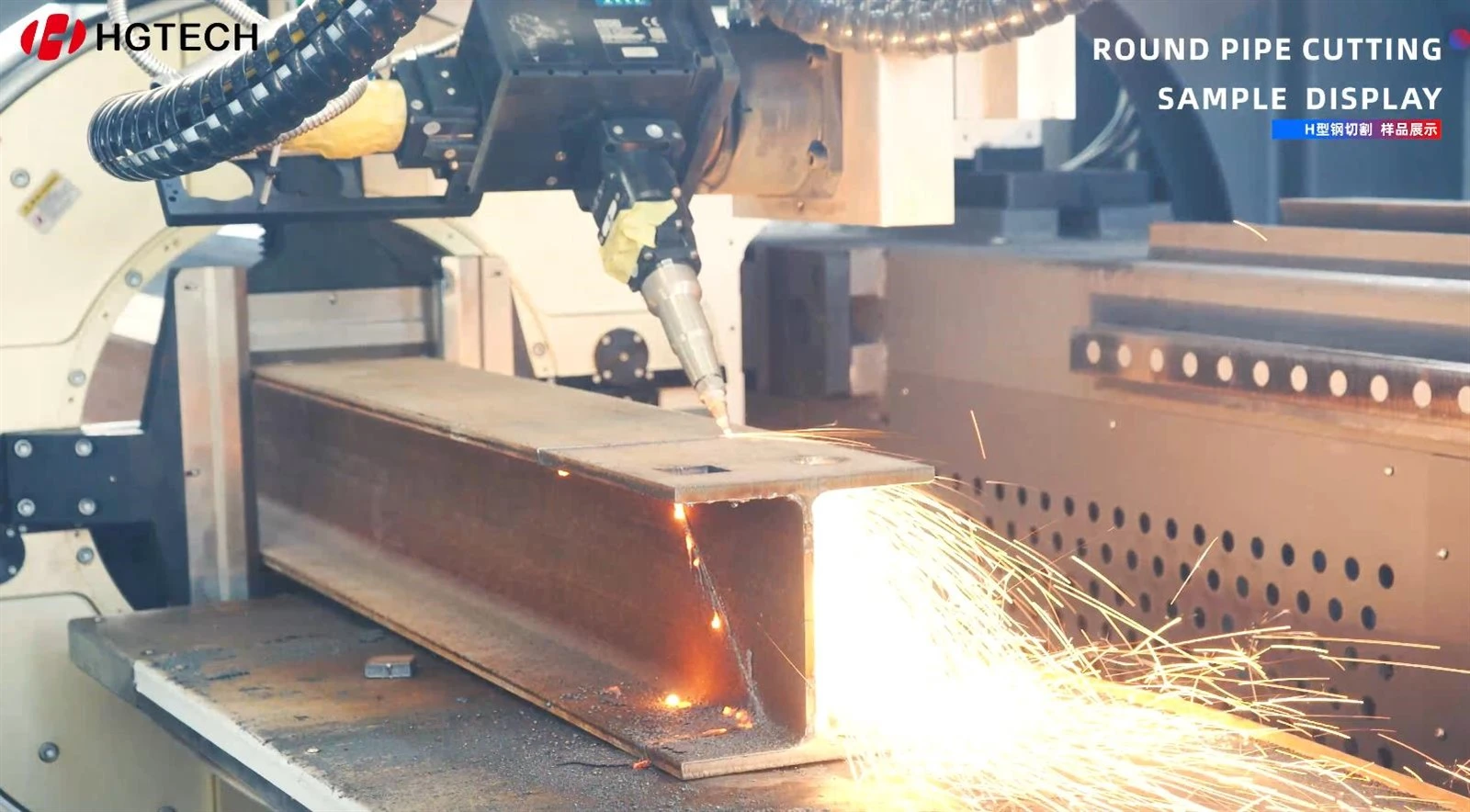

Before selecting a machine for H-beam processing, manufacturers should confirm the maximum section dimensions, flange and web thickness, workpiece weight, cutting access and required accuracy. A sample test using the intended H-beam specification is recommended to verify the complete process.

Structural Steel Profile Cutting

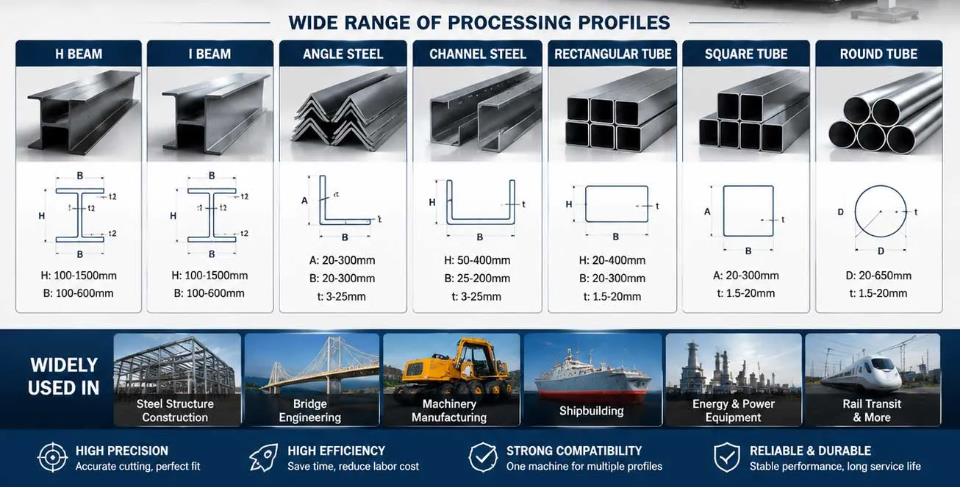

Structural steel fabrication involves a variety of open and closed cross-sections. Depending on the machine's supported geometry and configuration, potential applications may include compatible channel sections, angle steel, I-beams and other structural profiles.

These materials are often used in frameworks, supports, machinery structures and fabricated assemblies. CNC laser cutting can help consolidate multiple programmed features into a single processing workflow, reducing the need to transfer a workpiece between separate marking, drilling or cutting stations.

The exact range of supported profiles must be confirmed for each machine model. Open profiles can behave differently from closed tubes during clamping and rotation, so compatibility should be evaluated against the actual cross-section and cutting requirements.

Conventional Metal Tube Cutting

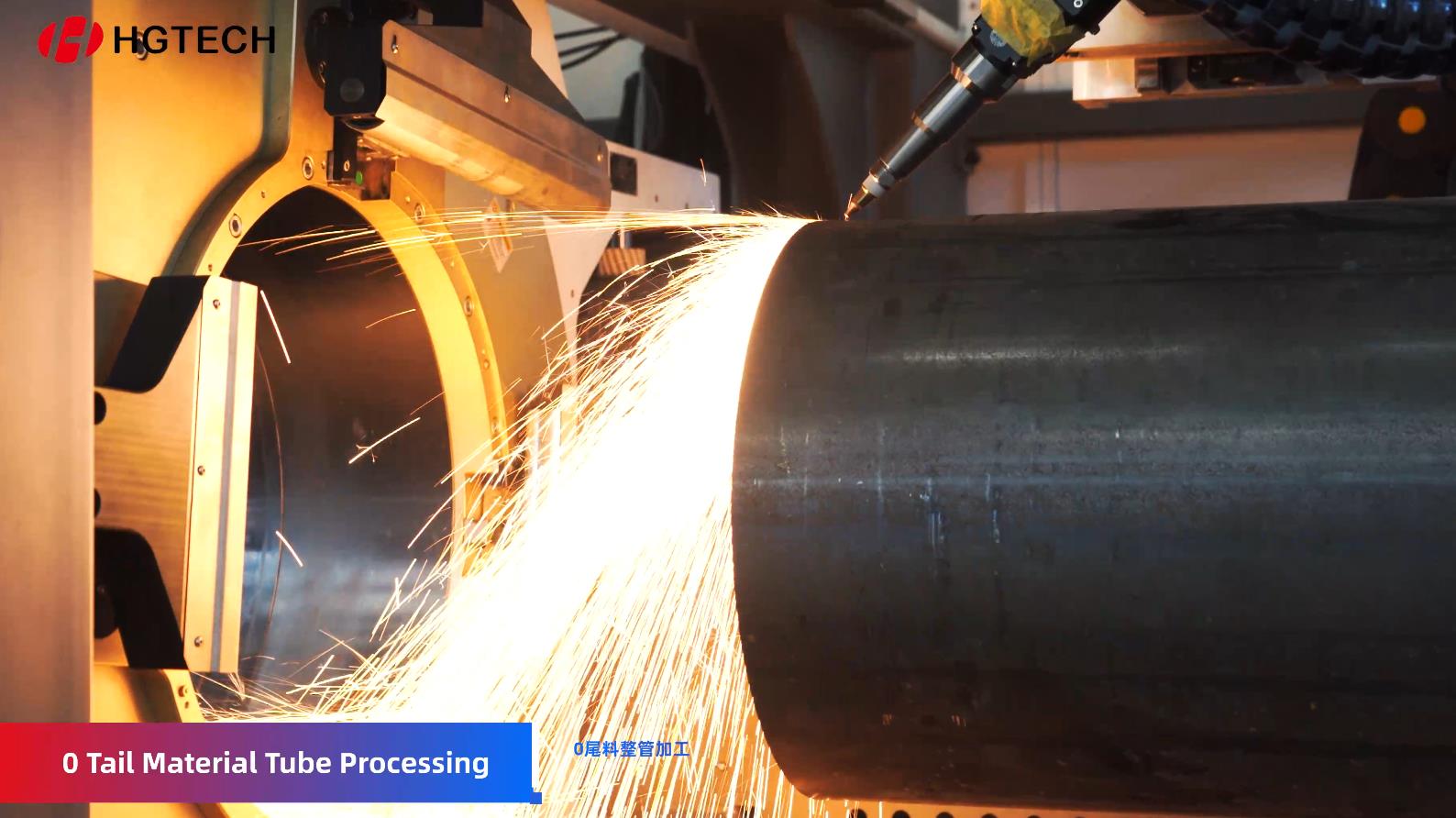

The machine also serves applications involving compatible round, square and rectangular tubes. Typical cutting tasks include holes, slots, intersections and end profiles for furniture frames, fitness equipment, automotive components and industrial structures.

When comparing machine configurations, manufacturers should consider both the range of profiles that can be processed and the time required to change between different production jobs.

Can a three-chuck laser cutting machine cut H-beams?

It can be configured for H-beam cutting when the selected machine supports the required section dimensions, workpiece weight, clamping arrangement and cutting geometry. Confirm the specific H-beam range with HGTECH before ordering.

What types of steel profiles can it process?

Depending on the machine configuration, applications may include H-beams, I-beams, channel steel, angle steel and compatible metal tubes. Not every profile is supported by every model, so section dimensions and clamping compatibility must be verified.

What information is needed to check H-beam compatibility?

Provide the section height, flange width, web thickness, flange thickness, overall length, material grade and workpiece weight. Drawings showing the required holes, slots and end contours are also useful.

Is this machine suitable for structural steel fabrication?

It may be suitable for structural steel applications involving compatible profiles and programmed cutting features. The final choice depends on section size, material thickness, required edge quality, production volume and downstream fabrication requirements.

Can the machine process both tubes and structural profiles?

The machine's ability to process both depends on the selected configuration, clamping system and supported cross-sections. Confirm the complete list of compatible profiles before planning mixed-profile production.
