Automatic Stainless Steel Tube Cutter

Automatic Stainless Steel Tube Cutter

LT series automatic stainless steel tube cutter design and manufacture by Farley Laserlab, adopts World’s highest efficiency and advanced structure, World’s leading brand IPG fiber laser source, Precitec laser cutting head, Siemens driver motor, Germany Beckoff CNC control
system etc......

Send InquiryChat Now

Product  Features:

It is specially for round, square, rectangular, oval, waist round tube and other special metal tubes etc. And the common cutting materials are 0.5-22mm carbon steel, 0.5-12mm stainless steel, galvanized steel, silicon steel, 0.5-10mm aluminum, 0.5-8mm brass, copper and other high reflective metal materials.

Fast-response height following: This height following function is achieved through a capacitor system, high frequency is transmitted to cutting head through the capacitor system installed on the metal part of cutting head, once a distance change occurred between the cutting work piece and the metal part of cutting head, frequency will change accordingly, an information will be sent to adjust Z-floating to appropriate position.

Laser Pointer:Assistance in optical path adjustment

Micro-joints Cutting: Guarantee end product rate when cutting thin plate

Edge-shared Cutting function to maximize plate utilisation efficiency

Cutting-retraction function to process non-performing cuttings

Adjustable power of corner cutting to ensure corner-cutting qualities



Tech Parameter:

Parameter

LT9035

LT7535

Processing Range

20x10mm- 180x180mm

20x10mm- 180x180mm

Standard Material

CS, SS, ALU Alloy

CS, SS, ALU Alloy

Cutting length

Max. Length 7500mm

Max. Length 8500mm

Automatic feeding Pipe length

2000- 9000mm

2000- 9000mm

Feeding stand bearing

4000KG

4000KG

CNC Axis No.

12

12

CNC

Siemens 840D

Siemens 840D

Laser Source

1000—4000W

1000—4000W

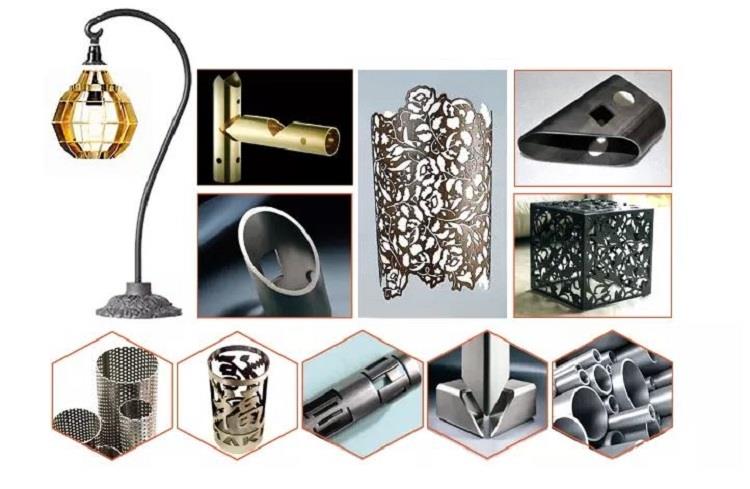

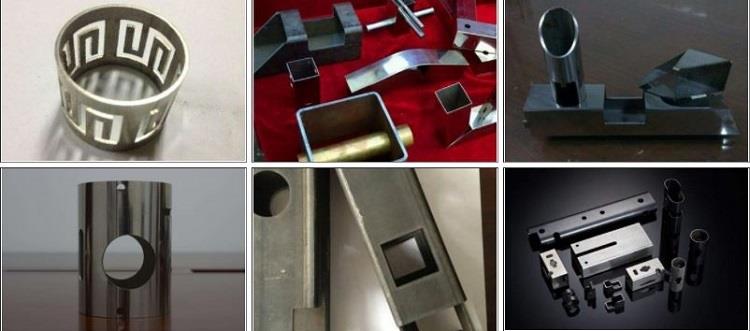

Applicatons:
