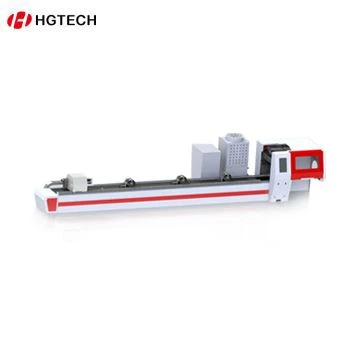

Automatic Tube Cutter

Automatic Tube Cutter

HGLaser TP series laser cutting tube machine are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc....

Send InquiryChat Now

Product  Features:

The operating system of TP series can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system,  efficient and accurate cutting instructions, effectively improve the user experience.



Lift Adjustable Support System

1. Simple change pipe type, installed to save time, reduce pipe swing
2. Auxiliary loading and unloading system perfect switch

Automatic Collecting System

1. Automatic elevating support, receive tube and scrap into the basket
2. Visual scale support can adjust support diameter quickly according to pipe diameter
3. Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging



Tech Parameter:

model

LT6515

LT7535

LT9035

LT7535S

Square pipe Working area(mm)

20-120mm



20-180mm



20-180mm



20-180mm



Diameter Round pipe(mm)

Φ20-Φ152mm

Φ20-Φ200mm

Φ20-Φ200mm

Φ20-Φ200mm

length(mm)

6500

7500

8500

7500

Loading weight(Kg/m)

15

25

25

40

X axis speed(m/min)

90

90

90

90

Rotary speed

540°/s

540°/s

540°/s

540°/s

Cutting way

2D

2D

2D

3D

CNC system

SIEMENS 840D

SIEMENS 840D

SIEMENS 840D

SIEMENS 840D

Laser source

Fiber 1000W-4000W。

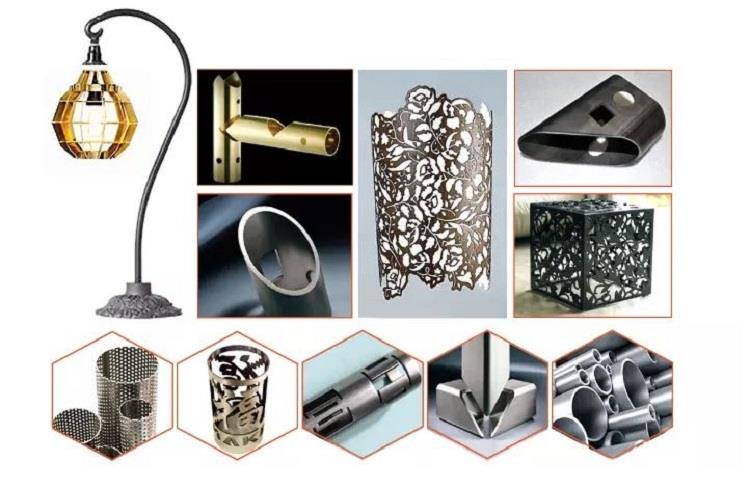

Applicatons:
