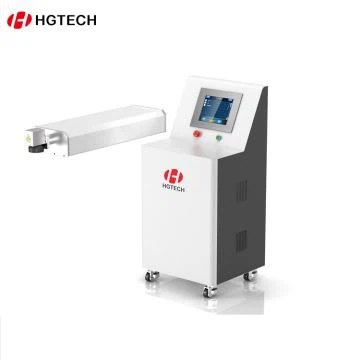

UV Laser Marking Machinery
UV laser marking is an ideal solution for businesses that require high-quality and permanent markings on their products. This cutting-edge technology utilizes high-energy ultraviolet photons to create precise and permanent marks on almost any material. UV laser marking offers numerous benefits when compared to conventional marking methods, and it is an excellent choice for businesses looking to enhance their brand awareness and improve the overall appeal of their products.
| Power | 3W,5W,8W |
| Wavelength | 355nm |
| Beam Quality | M2<1.3<> |
| Output Power | 10%-100% |
| Output Frequency | 15KHz-100KHz |
| Power Stability(8h) | <±2%rm<> |
| Pulse to pulse instabilit | <±3%rms<> |
| Spatial Mode | TEMoo(M2<1.3)<> |
| Beam Divergence | <2 mrad=""> |
| Beam Diameter | 0.6±0.1mm |
| Beam Roundness | >90% |
| Pointing stability | <50urad<> |
| Polarization Direction | Horizontal |
| Polarization Ratio | 100:1 |
| Cooling | Air-cooling/Water-cooling(8W) |
Laser UV laser marking machine system main advantages:
1. Because the focusing spot of UV laser is very small, and the heat-affected area of processing is small too, so it can do the ultra fine marking and special material marking, and it is for the customers who have higher request on the marking effect.
2. Flexible and convenient operating system: the humanized operation process, equipment operation stability is very good; Special control software can be compatible with AutoCAD, CorelDRAW, Photoshop and other software output; Can realize the text symbols, graphics, images, bar codes, 2D code, serial number and other automatic choreography and modification; Support the PLT, PCX, DXF, BMP, JPG, and other file formats, can directly use TTF word stock
High-end electronic logo marking: charger, wires, mobile phone accessories, computer accessories; Food, PVC pipes, pharmaceutical packaging materials (such as HDPE, PO, PP) marking; Flexible PCB marking; Metal or nonmetal coating removal; Porous silicon wafers and the blind hole processing and scribing; Fire prevention materials marking; Other plastic material marking.
Why HGTECH Laser?
1.Factory
(1)We are Factory to make laser machines with more than 48 years of experience.
(2)We are a reliable and experienced supplier. Our machine quality are assurable.
(3)CE and FDA certificate .
2.Warranty & After-Sale Service
(1) All the machines will be fully tested before shipment and free training for operator.
(2) The whole machine guarantee for 2 Years(some models)
(3) 24 hours' technical Support--Email, Telephone,Video Chat Or Romote assistance.
(4) User-friendly English Manuals for the Introduction of our Software/Machine and
CD (Guiding Videos) for Sotware's installing/Operation and
Machine'Using/Maintaining.
3.Easy to use and safety
(1)CD, Video, User Manual to guide you how to install, operate, maintain machine
step by step.
(2)limit switch for safe processing.Emergency stop-turn off machine immediately
