Metal Fiber Laser Welder
Metal Laser Welder: Precision Welding Solutions for Industrial Excellence
Transform your manufacturing workflows with the Metal Laser Welder, a cutting-edge fiber laser welding system designed for high-speed, high-precision metal joining. Engineered with IPG Photonics or Raycus fiber laser sources, this welder delivers 3000W peak power and ±0.05mm accuracy, making it ideal for automotive, aerospace, medical, and consumer electronics industries.
| Maximum laser power | 1500W | 2000W | 3000W |
| Optical maser wavelength | 1080nm±5nm | 1080nm±5nm | 1080nm±5nm |
| Fiber output quantity | Route 1 | Route 1 | Route 1 |
| Fiber length | 10m | 10m | 20M |
| Depth of field | 3mm stainless steel | 4mm stainless steel | 6mm stainless steel |
| 2mm aluminium alloy | 3mm aluminium alloy | 5mm aluminium alloy | |
| Voltage input | AC220V+1P AC | AC380V+10%/3P AC | AC380V+10%/3P AC |
| Overall power | 7.7KW | 9KW | 15KW |
| Type of cooling | Water cooling | Water cooling | Water cooling |
| Pump power | 0.26KW | 0.26KW | 0.48KW |
| Tank capacity | 10L | 10L | 16L |
| Rated flow | 1.5L/min+ 15L/min | 2.0L/min+ 15L/min | 2.0L/min+ 20L/min |
Products Features:
Key Features & Advantages
Unmatched Precision & Speed
Key Features & Advantages
Unmatched Precision & Speed

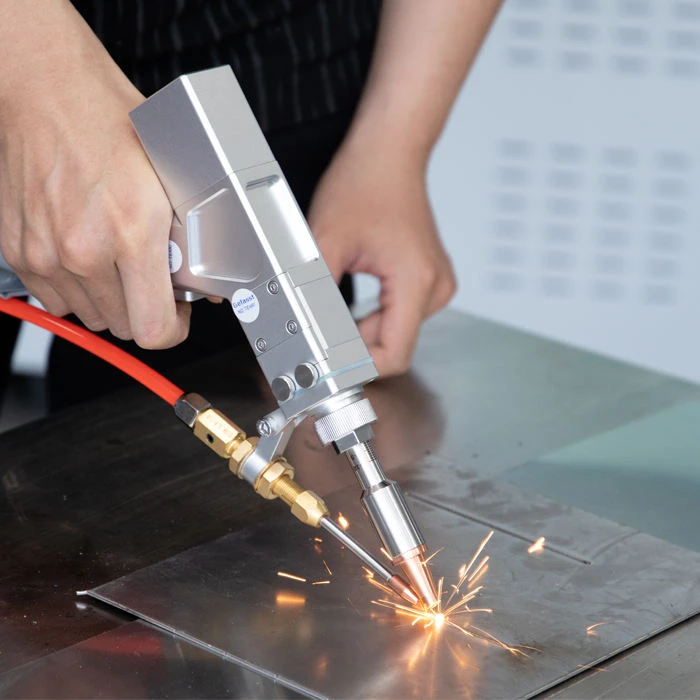

Achieve 10x faster welding speeds than traditional argon arc welding, with a 0.8KG ergonomic handheld torch for intricate welds on materials up to 8mm thick (stainless steel) and 3mm (aluminum).
Wobble welding technology compensates for small laser spots, enabling 0-4mm adjustable beam widths for irregular seams.
Energy Efficiency & Cost Savings
90% lower power consumption compared to conventional methods, with no consumables (e.g., welding rods) required.
Zero post-weld polishing due to smooth, scar-free seams, reducing labor costs by up to 2 workers annually.
Versatile Material Compatibility
Weld stainless steel, carbon steel, aluminum, copper, titanium, and alloys with consistent quality.
Dual-mode operation (self-fusion or wire feeding) supports applications from 0.8–1.6mm wire welding to heavy-duty structural joints.
Smart Automation & Durability
PLC-controlled systems with 10-meter fiber cables enable flexible integration with robotic arms, ideal for assembly lines or multi-station workflows.
IP54-rated components and industrial water chillers ensure 24/7 reliability.
Eco-Friendly & Safe
No toxic fumes or UV radiation, compliant with CE and ISO 1217 standards.
Automatic shading system protects operators during prolonged use
Why Choose This Welder?
Trusted by global manufacturers, this system combines German engineering precision with 100,000-hour laser lifespan. Request a free demo to see how it outperforms YAG and argon welders in heat control, speed, and ROI.
