Robot Arm 6-Axis Laser Welding Machine
Products Description

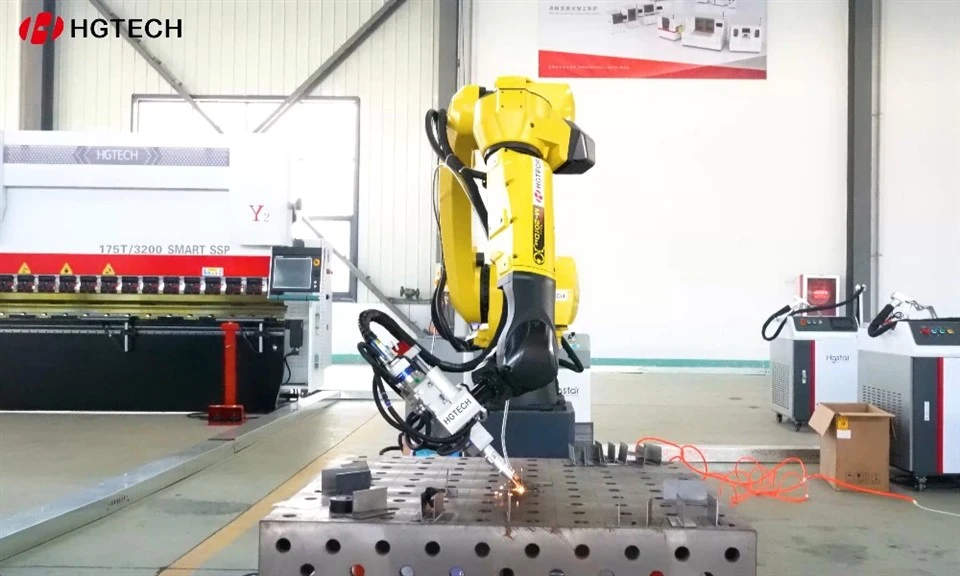

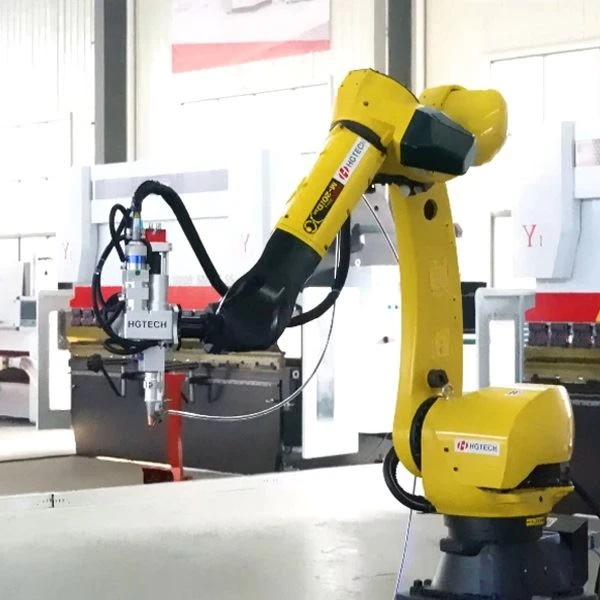

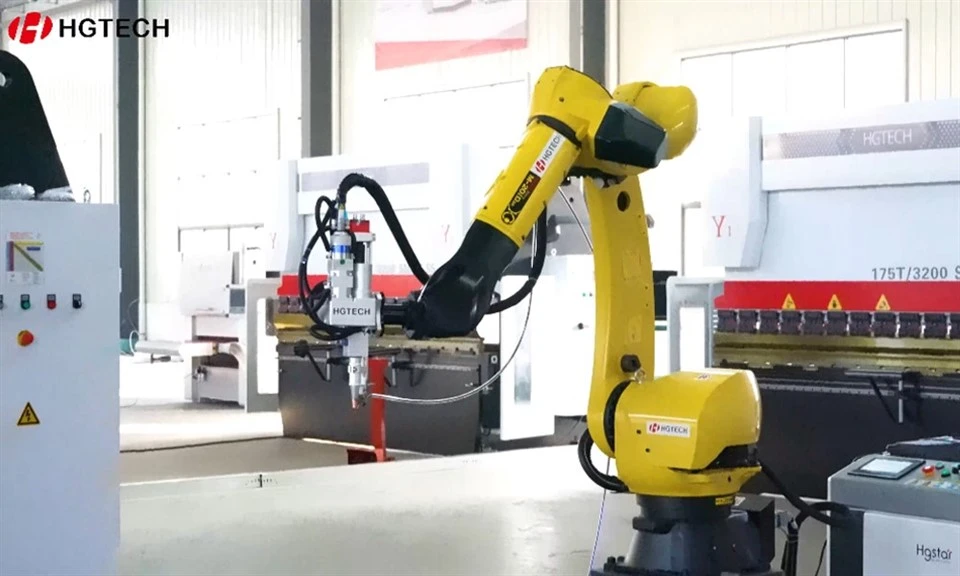

Robot fiber laser welding workstation is an advanced equipment integrating robot technology, laser welding technology and automation technology. The workstation is mainly composed of robot, laser generator, laser transmission system, welding head, worktable and control system.
The working principle of the robot fiber laser welding workstation is to control the movement trajectory of the welding head through the robot to focus the laser beam on the workpiece to achieve high-precision welding. Due to the use of fiber optic transmission laser, it can avoid the problem of using a large number of mirrors and focusing mirrors, which is required in traditional laser welding, and improve the quality of the beam and the stability of welding.
| Input power | 220V / 1500W | 220V / 2000W | 380V / 3000W |
| Automatic wire feeding | Yes | Yes | Yes |
| Bonding strength with base metal | OK | Very good | Very good |
| Welding gun model | A/B/C Optional | A/B/C Optional | A/B/C Optional |
| Laser wavelength | 1064nm | 1064nm | 1080nm |
| Overall power | 2500W | 3000W | 4500W |
| Welding interval requirements | <0.5mm | <0.5mm | <1.0mm |
| Aiming and positioning | Infrared | Infrared | Infrared |
| Robot automatic welding interface | Yes | Yes | Yes |
| Welding capacity / Aluminum | 0.2-3.0mm | 0.2-4.0mm | 0.2-6.0mm |
| Welding capacity / Carbon steel | 0.2-4.0mm | 0.2-5.0mm | 0.2-7.0mm |
| Welding capacity / Stainless steel | 0.2-4.0mm | 0.2-5.0mm | 0.2-7.0mm |
| Welding capacity / Galvanized sheet | 0.2-3.0mm | 0.2-4.0mm | 0.2-6.0mm |
| Welding speed | 0-120cm/Min | 0-120cm/Min | 0-120cm/Min |
Features:
1.Easy to operate
2.High precision and quality
3.Efficient production
4.Automation and uninterrupted production
5.Labor cost savings
6.Strong versatility and programmability - one machine for multiple purposes
Robot welding workstation
1,According to the customer's needs to select the robot
2,Torches can be used as handheld torches, industrial torches, vibratory mirrors
3,Laser welding power options 1000W, 1500W, 2000W, 3000W
4,Professional welding station and customized automation fixture are available as options.
5,Customizable loading and unloading automation
6,Multi-station option to ensure welding efficiency
7,Optional multi-robot welding collaboration
8,Optional non-contact welding seam tracking system
9,Can be equipped with high-efficiency industrial dust collection and purification system, welding near-field smoking device
10,Configurable Safety Protection Hardware Systems
11,According to the welding intensity, optional independent cooling heat dissipation system
12,Optional CCD LCD monitor inspection system
13,Standard wire feeder
14,Optional Positioner to Meet Angular Welding Needs
15,Optional Gantry Inverted Lifting
