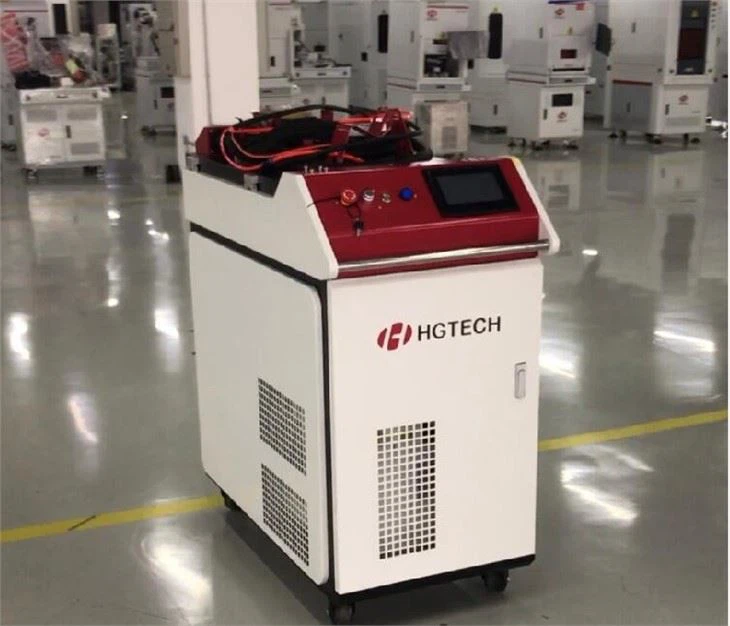

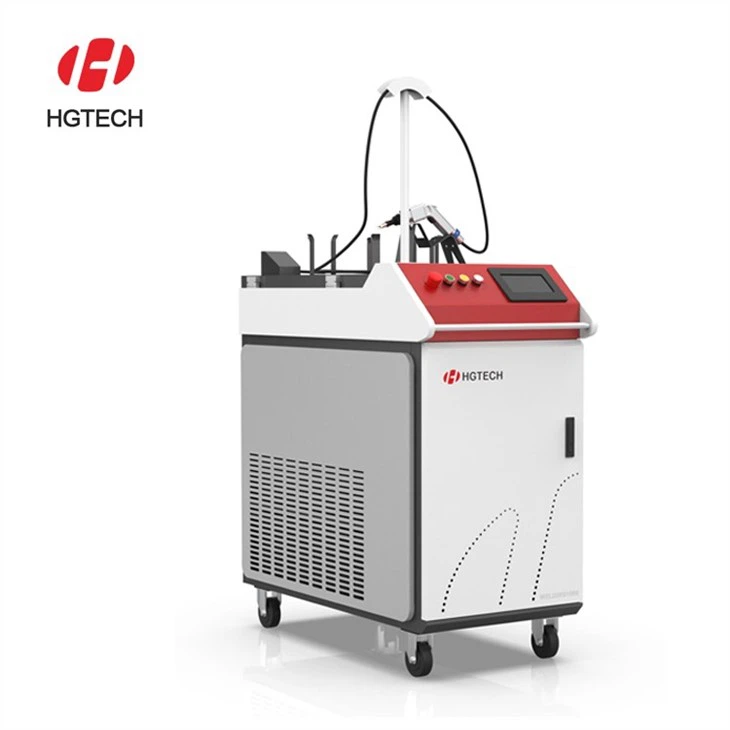

Fibre Laser Welding Machine
video

Fibre Laser Welding Machine

Fibre Laser Welding Machine Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum,aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet marking and engraving .
Send Inquiry
Product Introduction

Product Description:

What is fiber laser marking machine Application ?

Fiber laser welding machine is a new technology special for weld most of metal , include Stainless steel, Carbon steel, Aluminum, Brass, Galvanized sheet and so on . Compare with traditional Argon arc, MMA and TIG Welding , it has many advantage as follow:

1. Easy to operate , no need any experience, even a women also can did well on it .

2. High efficiency , 4-12 times faster than traditional welding.

3. Can weld at any angle, also can Butt welding, Vertical position welding, Fillment welding, Stich welding , etc . Most important, almost no need polishing after welding. As the base metal will not deformation and not have scar. Also it is more firm and stable .

4. Cost is much less , the labor cost and electrical power cost will reduce 50% at least

5. Safety for staff. No Radiation and harmful for people , only wear glasses then ok .

5

What materials can fiber laser marking machines be applied to?

Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum,aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet marking and engraving .



1kw welding ability
No.
Material
Depth of fusion
Penetration thickness
1
Stainless Steel
≤4mm
≤3mm
2
Mild steel/Iron
≤4mm
≤3mm
3
Galvanized sheet
≤3mm
≤2mm
4
Aluminum/brass
≤2mm
≤1mm
1.5kw welding ability
No.
Material
Depth of fusion
Penetration thickness
1
Stainless Steel
≤5mm
≤4mm
2
Mild steel/Iron
≤5mm
≤4mm
3
Galvanized sheet
≤4mm
≤3mm
4
Aluminum/brass
≤3mm
≤2mm
2kw welding ability
No.
Material
Depth of fusion
Penetration thickness
1
Stainless Steel
≤6mm
≤5mm
2
Mild steel/Iron
≤6mm
≤5mm
3
Galvanized sheet
≤5mm
≤4mm
4
Aluminum/brass
≤4mm
≤3mm

sample
