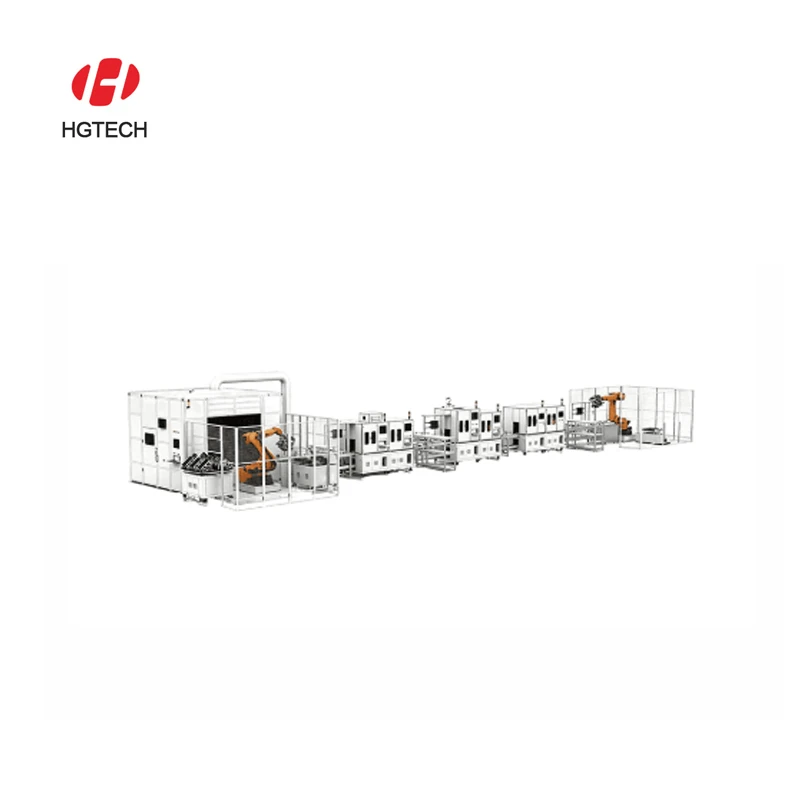

Prismatic Battery Modules Automatic Assembly Line
Products Description
HGLASER's Prismatic Battery Module Assembly Line integrates these processes into an automated production system for prismatic power battery modules. The line combines automatic material handling, cell scanning and data binding, module assembly, laser cleaning, welding, CCD inspection, electrical testing, AGV transfer and MES-based production management.
| Item | Specification / Configuration |
| Equipment Type | Automatic Prismatic Battery Module Assembly & Welding Line |
| Main Application | Prismatic lithium battery module production |
| Cell Type | Prismatic battery cells |
| Cell Handling | Automatic cell feeding and handling |
| Cell Identification | Automatic scanning and data binding |
| Cell Stacking | Automatic cell stacking and positioning |
| Module Assembly | Automatic module assembly |
What Is a Prismatic Battery Module Assembly Line?
A prismatic battery module assembly line is an integrated production system used to transform individual battery cells into tested and traceable battery modules.
For prismatic lithium battery production, several operations have to be coordinated closely. Cells must arrive in the correct sequence, stacking and module positioning must remain stable, welding surfaces need to be properly prepared, and electrical and visual inspections must be performed at appropriate points in the process.
HGLASER's solution brings these operations together in a single automated line.
The production flow can include:
Cell incoming → scanning and data binding → cell stacking → side/end plate preparation → adhesive application → module assembly → insulation inspection → side plate welding → pole cleaning → Busbar installation → Busbar laser welding → CCD inspection → module testing → cover installation → module unloading → AGV transfer
The exact configuration can be adapted according to battery design, production requirements and customer process specifications.
Applications of the Lithium Battery Module Assembly Line:
The system is primarily designed for automated production of prismatic battery modules and can be considered for applications such as:
Electric Vehicle Battery Manufacturing
EV battery manufacturers require repeatable cell assembly, reliable electrical connections and detailed production records. An automated module production line can connect these processes from cell handling through module testing.
Power Battery Production
For high-volume power battery manufacturing, automation can help standardize repetitive assembly and welding operations while providing process-level data for quality management.
Energy Storage Battery Manufacturing
Prismatic battery modules are also used in energy storage applications. Production requirements vary by module design and energy storage system architecture, so line configuration should be matched to the customer's cell format, module structure and testing requirements.
Battery Module Pilot and Scale-Up Production
An automated production concept can also be useful when manufacturers are moving from pilot production toward larger-scale manufacturing and need a more structured process architecture.
