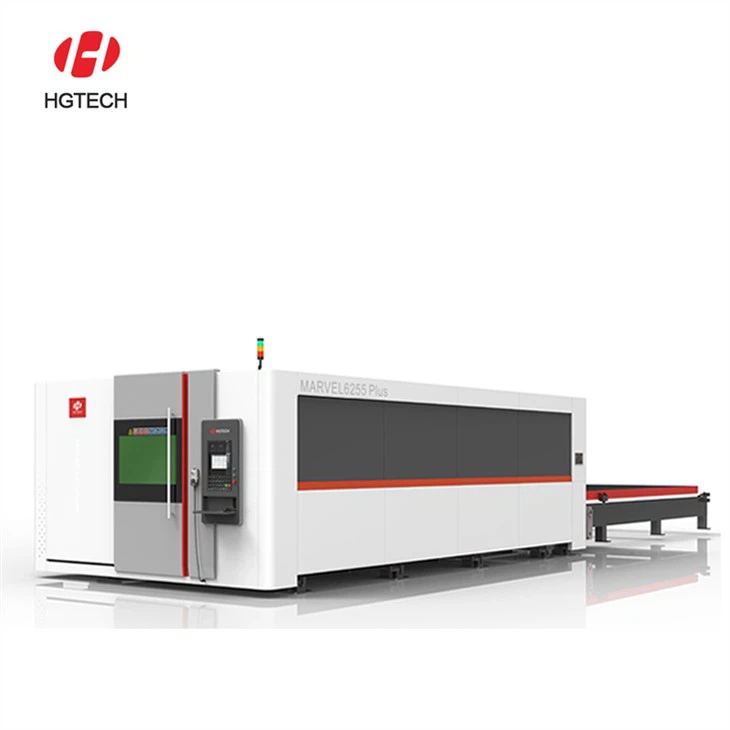

20000W Fiber Laser Cutting Machine
China 20000W fiber laser cutting machine for metal professional used to cut sheet metal, in a variety of high quality carbon steel sheet, stainless steel plate , aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal materials. According the thickness of your metal materials, the fiber laser source power from 10000w ~ 20000w for your option.
Characteristics of 20000w metal fiber laser cutting machine
| Model | MARVEL6000-4022 | MARVEL6000-6022 | MARVEL3000-3015 | MARVEL3000-4022 |
|---|---|---|---|---|
| Power | 6000W | 6000W | 3000W | 3000W |
| Cutting area(length width) | 4000x2200 | 6000x2200 | 3000×1500 | 4000x2200 |
| X-axis(mm) | 4064 | 6096 | 3100 | 4064 |
| Y-axis(mm) | 2232 | 2225 | 1525 | 2232 |
| Z-axis(mm) | 140 | 300 | 140 | 140 |
| Maximum positioning speed of X/Y-axis | 100 | 100 | 80 | 80 |
Maximum linkage positioning speed of X/Y-axis | 140 | 100 | 110 | 110 |
Features
- Laser Source 20000W at your choice
- Double servo motor driven synchronously, bring higher speed and acceleration
- Double driving synchonous technology make sure high speed and precision cutting
- Auto Focus Cutting Head dedicated for high power (Precitec)
- Dedicated laser CNC that makes the best and most of the laser
- Fast pallet exchanger and full enclosure
- Handy embedded cutting database
Why use CNC Fiber Cutting Solution ?
(1) Fiber laser cutting machine for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
(4) Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.
Advantages
Stable Mainframe
The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.
Efficient Control System
New CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners
Imported Operating System Smart Manager
Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.
Imported nesting software function
Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate
Pre-perforation System
Accomplish the pre-perforation as settled
46 Years Techinical Exprience
Expert Team: 1000 staffs, 30% of them own doctor or mater degrees, more than 20 senior specialists.
1.Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. (Stock code: 000988)
2.HGLASER is Chinese national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing.
3.Wuhan Huagong Laser Engineering Co.,Ltd possesses HGLASER and FARLEY?LASERLAB two famous brands. HGLASER has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services. The main products of HGLASER cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, military, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.
FAQ:
Q1: I know nothing about this machine, what kind of machine should I choose?
Very easy to choose. Just tell us what you want to do by using laser machine, then let us give you professional solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
