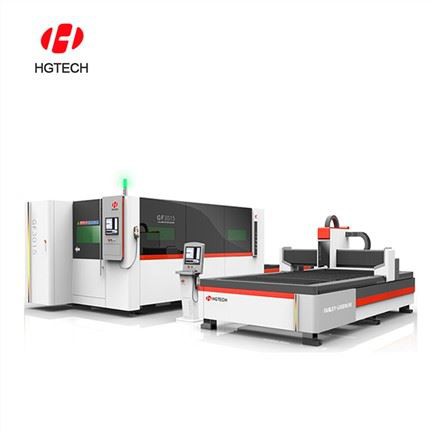

Fiber Laser Cutting For Steel Machines
When it comes to cutting thick aluminum alloys (e.g., 8mm 2219-T87), fiber lasers outperform CO2 lasers due to higher absorption rates and better beam quality. Key process parameters include:
Laser power: Higher power (up to 50kW) reduces slag height and improves surface roughness.
Cutting speed: An optimal range (e.g., 1.8 m/min) balances melt expulsion and thermal input.
Defocus amount: Negative defocus (focusing below the workpiece) enhances slag removal by increasing melt viscosity.
Auxiliary gas pressure: Pressures between 1100-1500 kPa minimize slag while maintaining stable airflow.
Safety is a critical consideration, especially with high-power systems (e.g., 15 kW). Full-enclosed machines equipped with radiation-resistant windows, HD cameras, and top ventilation systems ensure operator safety while allowing real-time process monitoring.
SPECIFICATION
| No. | ITEM | QTY | UNIT | SPEC |
| 1 | FY-LCM3012 body | 1 | Set | Square tube welded |
| 2 | Width | 3000 | mm | cut width 2000mm |
| 3 | Length | 6800 | mm | cut length 6000mm |
| 4 | CNC system | 1 | Set | HG |
| 5 | Capacitor height regulator | 1 | Set | HG |
| 6 | Servo motor | 4 | Set | Delta HG |
| 7 | Reducer | 3 | Set | PL130 |
| 8 | Fully enclosed drag chain | 2 | Set | HG Group |
| 9 | Lifting slide | 1 | Set | HG Group |
| 10 | Cutting head | 1 | Set | Shanghai Jiaqiang |
| 11 | Horizontal guide rail | 2 | Set | HG Group |
| 12 | Longitudinal guide rail | 2 | Set | HG Group |
| 13 | Helical gear rack | 3 | Set | China |
| 14 | Electrical components | 1 | Set | Chint/Delixi |
| 15 | Chiller | 1 | Set | HG3000W |
| 16 | Industrial computer | 1 | Set | HG125 |
| 17 | Electromagnetic proportional valve | 1 | Set | SMC |
| 18 | lubricating system | 1 | Set | BAOTN |
| 19 | Discharge trolley | 12 | Set | HG Group |
| 20 | Exhaust system | 3 | Set | HG Group |
| 21 | Laser generator | 1 | Set | 1500W (quality cutting 6mm) |
| 22 | 3000W (quality cutting 12mm) | |||
| 23 | 6000W (quality cutting 20mm) | |||
| 24 | 12000W (quality cutting 30mm) | |||
| 25 | 20000W (quality cutting 50mm) | |||
| 26 | Exchange table (optional) | 1 | Set | HG Group |
| 27 | Full cover (optional) | 1 | Set | HG Group |
| 28 | Key selling point | Flexible and customizable specification | ||
| 29 | Applicable Industries | Manufacturing Plant, sheet metal cutting, machinery, shipbuilding, automobile, steel factory, metal workshop etc. | ||
FAQs
1.Are you a manufacturer or a trading company?
Combining geographical advantages, we have 45 years of manufacturing and we are also working together with our raw material suppliers developing new items every year, to reduce material cost and offer final discount to customers.
2.What is your company's reputation and industry experience?
We get 98% positive feedback during 25 years production, and we have been self-developing every year with customer satisfaction survey.
3.What is your factory's production capacity?
Our factory's production capacity is [120,000 to 150,000] units per year, with the ability to scale up production based on demand.
4.How do you handle quality control and product inspection?
We implement strict quality control measures and have a dedicated inspection team to ensure all products meet international standards before shipping. Finally we provide clients with production pictures and videos.
