FPC Laser Cutting Machine

Series Introduction

With years of industrial application for PCB processing, HGLASER specializes in integrating laser marking and cutting tech into the PCB production lines.


FPC laser cutting machines adopt high-performance cold laser source, perfectly achieving the board shape cutting, contour cutting, drilling and cover film cutting and other ultra-fine processing.  The equipment is mainly used in precision cutting and marking for flexible circuit boards, rigid circuit boards, rigid-flexible circuit boards .


Adopted with high-performance UV laser cold light source, high-precision CCD image positioning technology and self-developed visual laser control software, the Flexible PCB laser cutting machine from HGLASER perfectly implements contour cutting, drilling and marking of FPC and PCB, and precision processing of composite membrane.

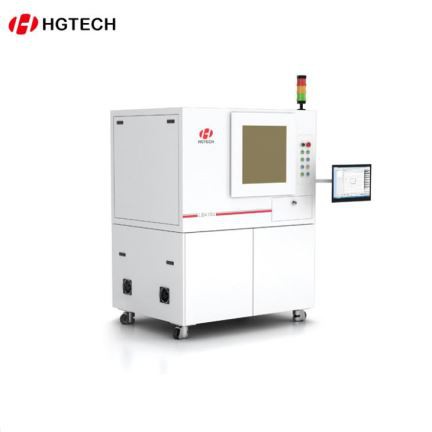

FPC Flexible PCB Laser Cutting Machine

Adopted with high-performance UV laser cold light source, high-precision CCD image positioning technology and self-developed visual laser control software, the FPC flexible PCB laser cutting machine of HGLASER perfectly implements contour cutting, drilling of FPC and PCB, and precision processing of composite membrane.

● Without models, one-step forming, save a lot of costs;

● Precision two-dimensional worktable and full closed-loop CNC system ensure the high precision of micron dimension;

● Position sensor and CCD image positioning technology;

● Automatic positioning and focusing system produce high efficiency.

FPC Laser Cutting Machines are used for processing of FPC, PCB, rigid-flex board, FR4 and cover film ,etc.


FPC Flexible PCB Laser Cutting Machine

Laser

Laser Source

355 nm UV

Power

10 W

Coaxial Video Positioning

B/W CCD

Scan Range

60×60 mm

Focused Spot Diameter

<20 um (UV Laser)

Auto Focus Syste

Z axis auto focus

Focus Control Precision

0.01 mm

Main structure configuration

X-Y Working Platform

Ac servo motor

Base

High-precision granite platform

Travel Range

300×400 (Optional size range)

Platform Motion Resolution

0.5 um

Overall Control System

IPC

Assisted Control System

Mitsubishi PLC

CCD Lighting Source

620 nm red light LED

External Auxiliary Device

Negative pressure air blower, dusting system

Processing Characteristics

Processing Size Range

360×460 mm

Min Linear Width

20 um

Stitching Accuracy

±5 um

Scanning Head Correction Accurac

±5 um

X-Y Table Correction Accuracy

±4 um

CCD Matching Accuracy

7 μm

Processing Accuracy

±4 micrometers

Processing Thickness

<1 mm

Environmental Conditions

Power Supply

AC 220V±10%,50HZ,1P,3KVA

Fixture

Customize to the needs

Document Format

DXF, GBR, etc.

Environment Temperature

15-30°(constant temperature for high precision)

Environment Humidity

<50%

Weight

1500KG

Mainframe Siz

1350mm(W) ×1050mm(D) ×1950(H)
