Fiber Laser Marking PCB
Product Features:
PCB is composite material, in which different elements react differently to the laser, so the laser source and parameters should be properly selected to achieve the best results.
Work offline or online by cooperating with upper and lower board equipment;
Multi-board and multi-position marking by X/Y servo Module ;
Front and back marking to increase work efficiency .
Application: High efficiency and speed large area PCB marking
Applicable for text, drawings with low heat affecting. High precision, low costs, easy to operate and no pollution.
Tech Parameter:
Laser source | Type | CO2/Fiber/Green/UV |
Wave length | 10600nm/1064nm/532nm/355nm | |
Average output power | 10W/20W/10W/3W | |
Processing ability | Processing ability | Single side laser marking |
Working area | 460mm*510mm | |
Repeated positioning accuracy | ?.1mmm | |
Mix line width | ≦0.1mm | |
Mix word/number height | ≦0.3mm | |
Main Components | Electric working platform | Servo motor driving precise linear module |
Positioning system | Slant CCD camera | |
Control system | Industrial PC | |
Assistant control system | Mitsubishi PLC | |
Working condition | Rated voltage | 220V |
Rated Frequency | 50Hz | |
Total Power | 1.5KVA | |
Phase | 2 | |
Environment temperature | 15-30℃ | |
Humidity | ﹤50％ | |
Machine dimension | 1200mm×1650mm×1500mm |

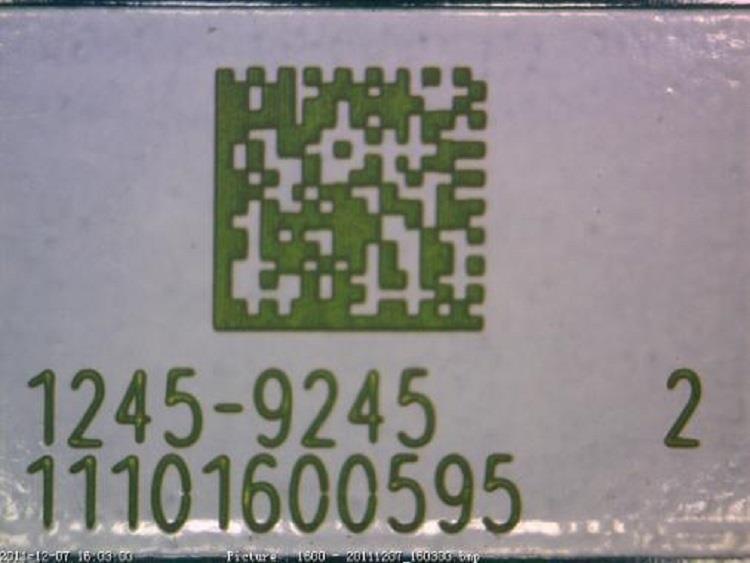

Applicatons:
